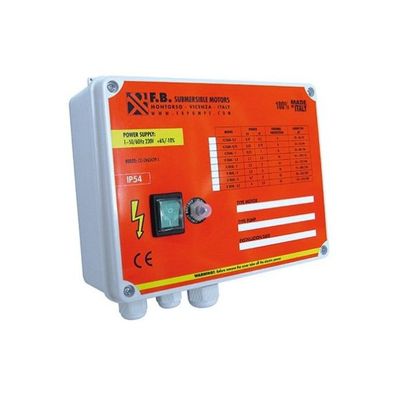

Model Range IC Dual -Single-Phase High Starting Torque Control Panel
FromF.B. Srl
IC-DUAL control panels are studied to control a single-phase submersible electropump helped by two capacitors, to assure high starting torque. At start-up, when a certain voltage is reached on the second capacitor the voltmetric relay deactivates the electrolytic capacitor.
Most popular related searches
This control panel is recommended when:
- power supply cable is particularly long
- pumped water has high degree of hardness (limestone)
- water has high content of sand
- the electropump doesn’t work for very long time
- input voltage 1 ~ 50/60Hz 230V ±10%
- luminous main switch 0 - 1
- running capacitor - electrolytic capacitor (starting)
- an input for a oat switch or a pressure switch
- thermal protection with external reset button
- thermoplastic box
- outlets with cable-holders
- protection grade IP54
- arrangement for wall mounting
- ambient temperature: -5/+40°C
- relative humidity at 40°C: 50% (not condensed)
