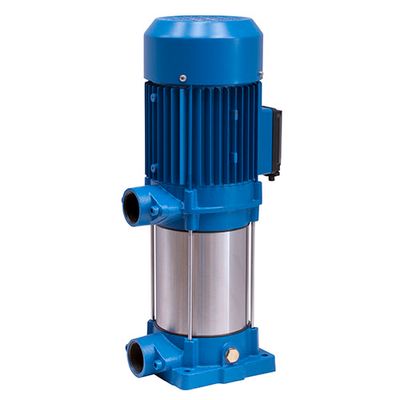

Model ROMA5-9 -Vertical Multicellular Centrifugal Electro-Pumps
Electro-pumps suitable for the installation of pressure and fire protection units due to its vertical position and small size.
Most popular related searches
vertical pump
fire protection
multicellular centrifugal pump
vertical centrifugal pump
vertical centrifuge
centrifugal pumping
centrifugal pump
multicellular pump
centrifuge
impeller pump
TECHNICAL CHARACTERISTICS
- Type: Multistage
- Flow (l/h): 500 - 10500
- Head (m): 10 - 110
- IP: 44
- Isolation: F
- r.p.m.: 2900
- Cooling: External ventilation
- Temp. max. (ºC): 50
- Max. suction depth: 6 m.
- Impeller: Closed
MATERIALS
- Pump body: Cast iron
- Suction body: Cast iron
- Housing: ‘AISI 304’ Stainless steel
- Impellers: ‘AISI 304’ Stainless steel
- Diffusers: Polycarbonate with fiber glass
- Shaft: Stainless steel ‘AISI 316’
- Mechanical seal: Silicon Carbide/Graphite/Viton/AISI 304
- Plugs: Brass
- O’rings: EPDM
Note: All models are supplied with corresponding counter flanges, screws and joints.
