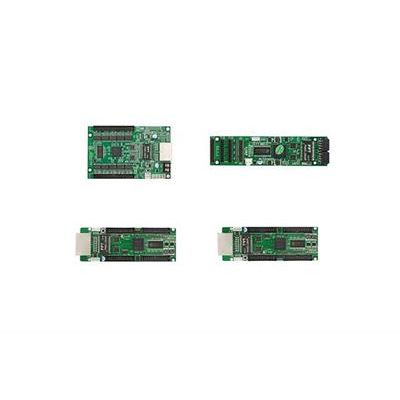

Model S3.5 -Control System Receiving Card
S series is a general scanning board for cabinet screen, rental screen and ultra-thin screen. It is more stable and reliable with better quality.When change the receiving card, it is no need to reset the parameters, which helps to save time, improve efficiency and simplify after-sale service.It supports the dot-by-dot correction of ultra large pixel area.
Most popular related searches
Model: S3.5
- load area: 256 *256
- refresh rate: static screen up above 5500Hz
- interface Type: 2*RJ45，HUB board output
- scanning mode: Static -32 scan
- gray levels: 4096—65536
- by-point correction: brightness, color
- correction area: 128 * 128 (brightness correction), 64 * 64 (color correction)
- chip Support: conventional chip, PWM chips, lighting chip
- number of outputs RGB data groups: Group16
- online Upgrade: √
- cascade card number: Generally the value 256, maximum 512
- loss of brightness: 5%--20%
- operating Voltage: 5V DC
- working temperature: -40℃--75℃
- dimensions: length 136.5 * width 47.9 (mm)
- Support multi cascade splicing driven high resolution LED screen.
- Supports arbitrary offset of single-machine and single-network ports to achieve special-shaped display.
- transmission modes of signals.
- Smart Splitting of video signal, re-distribution of the signal.
- Supports real-time signal integrity diagnostics.
- Long distance network cable transmission.
