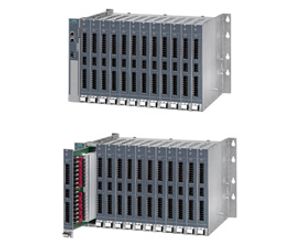

Model SIPLUS HCS4200 -Heating Control System
FromSiemens AG
The SIPLUS HCS4200 heating control system controls and switches heating elements in 230 V AC voltage systems. Communication is via PROFINET.
Most popular related searches
- (Pre-) drying of paints and coatings:
cars, furniture, ... - Forming of plastics:
interior car door trims, refrigerator doors, bezels for computer tomographs, ... - Plastic welding:
airbags, car doors, pipes, ...
- For controlling 230 V heating elements with a maximum output of 1,449 W per output and up to 16.1 kW per Power Output Module (POM)
- Even load distribution across all connected loads
- Easy installation thanks to plug-in POMs
- Installation of rack directly onto support plate in control cabinet
- Line infeed via 3-pin connector
- Load outputs via 8-pin connectors
- Individual heating element lines fused. Easily accessible fuses.
- Fast, detailed and integrated diagnostics
- Engineered in the TIA Portal
- Communication via PROFINET
The SIPLUS HCS4200 heating control can be easily expanded and therefore adapted very flexibly to specific requirements. A HCS4200 consists of
- a Central Interface Module (CIM),
- up to 12 Power Output Modules (POM)
- one rack accommodating up to 16 plug-in POMs
- Optional: fans, 1 fan for every 4 POMs
Up to 16 heating elements can be controlled via the POM, meaning a maximum of 192 heating elements per rack. If more heating elements are required, additional racks can be used.
Interfaces
- The heating elements are connected via connectors on the front
- 2 PROFINET interfaces
Power outputs
- Max. 192 power outputs per rack
