Model SIPLUS HCS4300 -Heating Control System

For controlling 400 V / 480 V heating elements with a maximum output of 7,680 W per output and up to 69.1 kW per power output module (POM)

• Even load distribution across all connected loads
• The out and return lines of each heating element are fused
• Plug-in fuse module for easy fuse replacement
• With easy direct mounting on busbars; also available soon for backplane mounting
• Load output via 3-pin connectors
• Line voltage compensation for compensation of line voltage fluctuations
• Just one 24 V infeed required for CIM and POM
• Perfectly integrated in Totally Integrated Automation (TIA) solutions from Siemens and in the TIA Portal
• Highest level of production reliability thanks to comprehensive, detailed and integrated diagnostics
• Communication via PROFINET

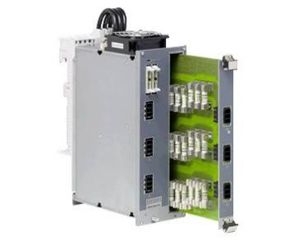

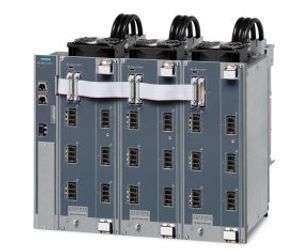

The SIPLUS HCS4300 heating controller can be easily mounted onto a busbar system. It can be extended in a modular system and can therefore be adapted to specific requirements in a highly flexible manner. One HCS4300 comprises one central interface module (CIM) and up to 6 power output modules (POM). Up to 9 heating elements can be controlled per POM, which means a maximum of 54 heating elements per CIM. If more heating elements are required, additional CIMs can be used.
