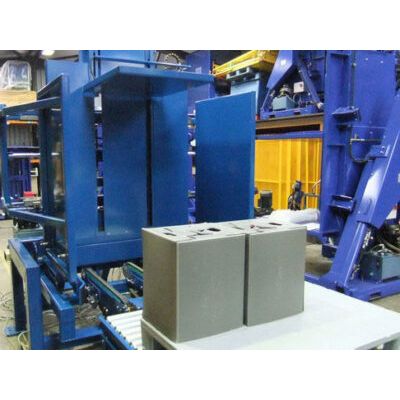

Model SP 01 -Pallet Exchangers

The operation lasts about one minute per stack and the operating system is using a multiple phase process. First the base pallet is fixed on the beneath table and the load itself is being contained by a top sliding clamp and two moving sidewalls. The machine is tilting back to a position beyond 90° at which point the stack remains to rest on the back and top support. While staying in this position, the lateral clampings maintain the safety and integrity of the load and prevent it from any movements or sliping.

In the same time, the loading table of the pallet changing equipment is released and the pallet alone is returned to the ground level where it can be exchanged with the intended one by the waiting pallet truck. The system then goes through another phase to bring the new pallet to the base of the still suspended stack and then, finally, to lower the stack in its upright position and on its new pallet.

The pallet changers are designed and built to meet high demanding customer requirements in terms of pallets transfer, such as the ones from the pharmaceutical industry. This sector uses the machines to efficiently switch goods to and from hygienic in-house pallets. The system is equally suitable for any other industry where companies strive to implement a pallet handling system that considerably improves the internal work processes and protects their goods and the people working inside.

These stationary pallet changers are suitable for all standard dimensions pallets and can handle piles of goods with a load of up to 1,500 kg. The totally automated system for pallet transfer is supplied together with appropriate fixed guarding to ensure operations of maximum safety in any work environment.
