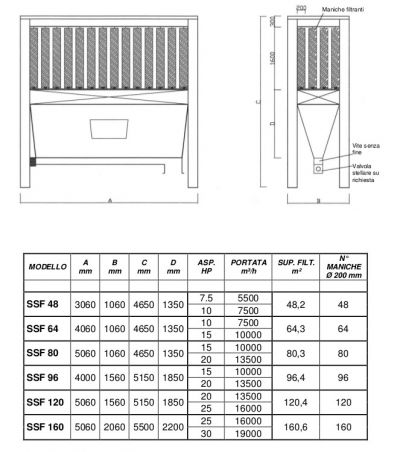

Model SSF -Handled Filter System

Handled filter sub-station employed for the suction and the filtration of wood shavings and dust. Entirely constructed in zincated sheet, pressure folded. Central plenum and hopper composed of a single piece, higher and lower legs dismountable to make the transport easier. Filtering Sleeves Ø 200 h 1600 mm in fabric of genuine cotton 350 gr/m2 with Snap Ring. The air, after crossing a central plenum, goes out purified from the wood waste through the filtering sleeves. The waste falls down for gravity into the coclea with continuous discharging of the material installed mass-produced in all models. Available in many versions according to the fan power, open with sleeves at sight or careneed in the higher side with zincated panels and entry door to the filtering zone. Cleaning system of the sleeves with electrical vibrator available by request in the careneed or open versions. The SSF filter is employed for loading of containers or storage silos.
