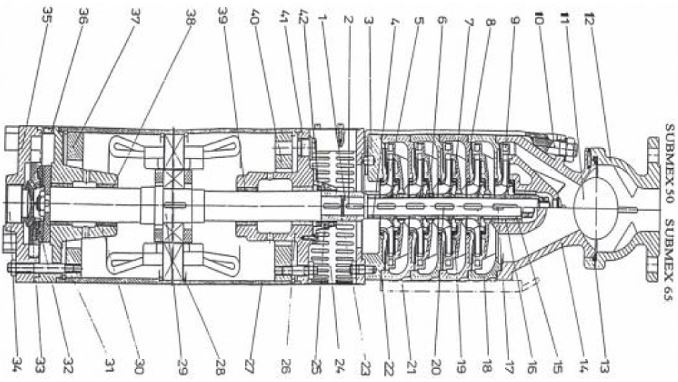

Model Submex - Multistage Centrifugal Pump
Submersible centrifugal, multistage, vertical pumps rigidly coupled with submersible electric motors at the bottom of the aggregates. The pump shaft is guided in the sliding bearings lubricated by the pumped liquid. The aspiration of the water is realized through a sieve installed before the suction case, between the pump and the electric motor, which is designed to hold large impurities.
- SUBMEX pumps are designed for pumping industrial and clean water.
- Used for supplying households with water or irrigation systems.
- Boosting the pressure in water supply installations for tall buildings.
- For lowering the groundwater level in mining exploitations.
- Flow 3-35 m3/h
- Height 10-160 m
- Temperature max105 0C
- DN Discharge 50-65 mm
