Mecanex SA products

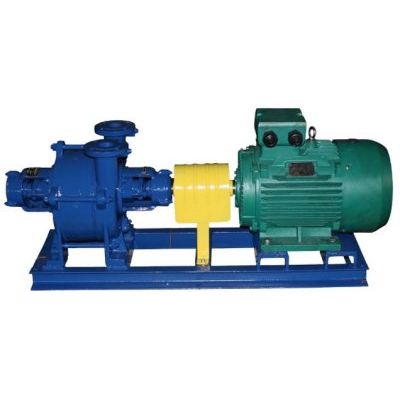

Volume  pumps with ring of Liquid. Mono or double staged pumps with horizontal axle. Star-rotor eccentric mounted in housing. Soft sealing.

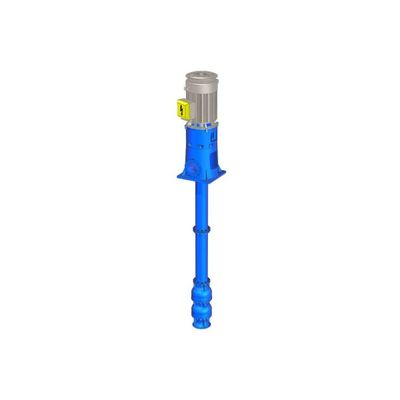

The MEX-MA200 pumps are of the diagonal, multi-storey, vertical type, coupled with electric motors located in the upper part of the aggregates. These pumps are made up of removable sub-assemblies for ease of transport and installation in pumping stations, given their relatively large dimensions and weights. The hydraulic subassembly (pumping subassembly) is made of cast iron, the rotor is of closed construction, the shaft is guided in sliding bearings, and the bearings are lubricated with the circulated liquid.

Volume  pumps with caged wheels. Both suction and discharge holes are set in horizontal plane. Slide bearings. Greasing by circulated Liquid. Provided with stuffing box.

Submersible centrifugal, multistage, vertical pumps  rigidly coupled with submersible electric motors at the bottom of the aggregates. The pump shaft is guided in the sliding bearings lubricated by the pumped liquid. The aspiration of the water is realized through a sieve installed before the suction case, between the pump and the electric motor, which is designed to hold large impurities.

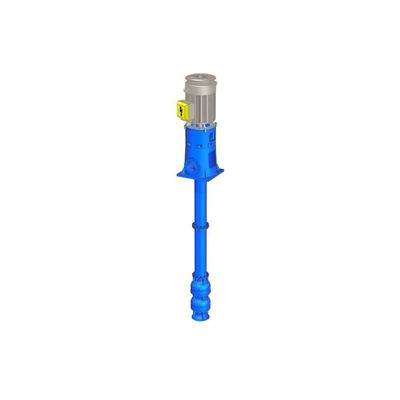

The MEX-MV253 pumps are diagonal, multi-storey, vertical type, coupled with electric motors located at the top of the aggregates. These pumps are made up of removable sub-assemblies for ease of transport and installation in pumping stations, given their relatively large dimensions and weights.

Electromagnetic flowmeters are used in water, sewage and similar areas that have electrical conductivity. The most important advantage of electromagnetic flowmeters is that they have no moving parts and therefore require minimal maintenance. Some types of electromagnetic flowmeters. Economic sandwich type flow meter, with inner body covered with Teflon (PTFE). Flange flowmeter specific for water and waste water applications, inner body coated with hard rubber, WRAS approved. Flow meter with battery. Ceramic covered sandwich type flow meter.

ACV and ACV-D pumps are single-stage, vertical centrifugal pumps with long transmissions; The ACV pump operates in dry environments; The ACV-D pump is immersed in liquid; The mechanical part of the pump consists of a train of shafts, arranged in line; Soft sealing with graphite cord; The drive shaft is coupled to the motor shaft by means of an elastic coupling.

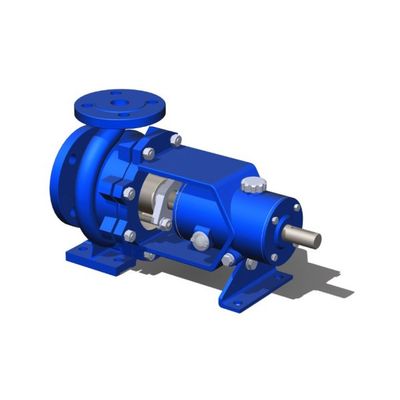

Single-stage centrifugal pumps with horizontal axis. Axial suction. Lubrication in oil bath. Sealing with graphite cord. Vertical discharge. Closed impeller with single or double curved blades, in single flow.

Minimum flow (m3/h) : 1.  Maximum flow (m3/h) : 80. Minimum pumping head : 20. Maximum pumping head : 80. The maximum temperature : 130 °C. Nominal pressure : 30 (bar). suction DN : 50 – 100 mm. DN discharge : 40 – 80 mm. Areas of use / applicability : Agriculture - Irrigation , Food , Water supply , Construction , Energy , Chemical industry , Mining , Naval , Petroleum , Steel , Domestic use.
