Model T 700 -Drum Centrifuges
Specific Characteristics: Throughput 800 - 3000 l/h, Pre Filter 350 µm, Manual Disludging (without usage of tools), Capacity Sludge Container up to 5 liters, Three Phase Separating (alternative two phase separating), Removing Distracting Tramp Oil, Compact Design, Adjustable Flow Rate.
- Fine cleaning >5µm
- No consumable filter materials required
- Semisolid sludge
- Also applicable for heavily contaminated media
Options
- Electrovalve for the feedback pipeline
- Suction System with magnet base 60/100 strokes
- Suction System with magnet base 110/180 strakes
- Suction System Free Floating
- Custom Colour
Housing
Welded-construction with 3 mm steel sheet
Outside- and inside double coating 2-K-varnish (NCS-S 2010-R70B)
Hoses
Suction hose, length 4,5 m, Ø 25 mm, D-coupler at the end of the hose
Recirculating hose - cleaned medium, Length 4 m, Ø 25 mm.

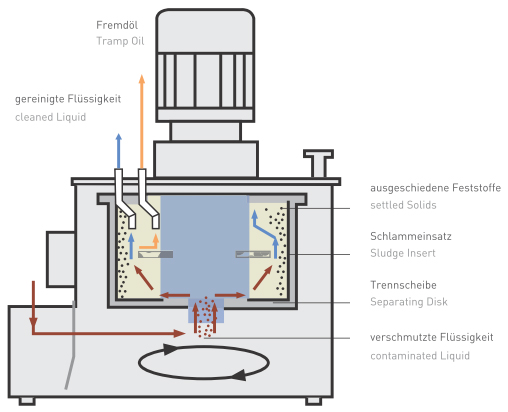

Separator-system
Solid collecting 3-phases-disk separator
Type MKR 3.03, 2- und 3-Phases-Separation
Capacity:
- 800-1000l/h at 3-Phases-operation
- 1000-3000 l/h at 3-Phases-operation

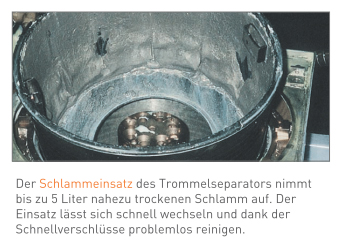

Medium-affected separator parts from aluminum, optionally stainless-steel available Supply with two mud-inserts
Pre filter, for pump-protection
Single filter stainless-steel 1 mm
Emptying system
Oil tank with ball cock for emptying
Switch cabinet
Switch cabinet equipment predominantly with Siemens – components
Optionally different surface-sucking-systems are available.
Documentation
Operation manual, wiring diagram
