Model T 710 -Drum Centrifuges
Specific Characteristics: Throughput 800 - 3000 l/h, Pre Filter 350 µm, Manual Disludging (without usage of tools), Capacity Sludge Container up to 5 liters, Two Phase Separating, Compact Design, Adjustable Flow Rate.
- Fine cleaning >5µm
- No consumable filter materials required
- Semisolid sludge
- Also applicable for heavily contaminated media
Options
- Electrovalve for the feedback pipeline
- Custom Colour
Frame work
For the admission of the centrifuge, the pre filter, the feed pump as well as the control system a stable rectangle tubing framework is used.
Outside- and inside double coating 2-K-lacquer (NCS-S 2010-R70B)
Hoses
Suction hose, Length 4,5 m, Ø 25 mm
Recirculation hose cleaned medium, length 4 m

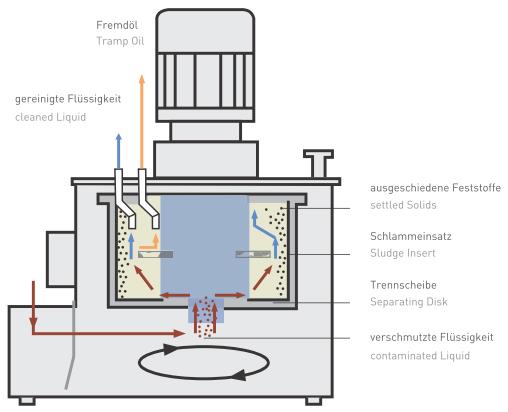

Separator-System
Solid collecting 2-phases-disk separator
Capacity 800-3000 l/h
Medium-affected separator parts from aluminum

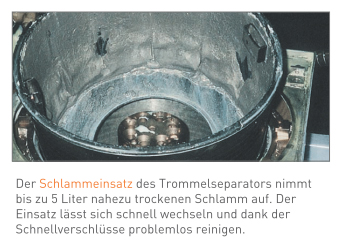

Supply with two mud inserts
Pre filter, for pump protection
Single filter stainless-steel 1 mm
Switch cabinet
Switch cabinet equipment predominantly with Siemens – components
Electrical connection
16-A-Cekon-connector With 10 m electric cable
Documentation
Operation manual
Wiring diagram
Options:
Feed pump as rotary pump or air operated diaphragm pump With or without feed valve
For medium-affected parts in stainless steel see our extra datasheet: T 710 VA
