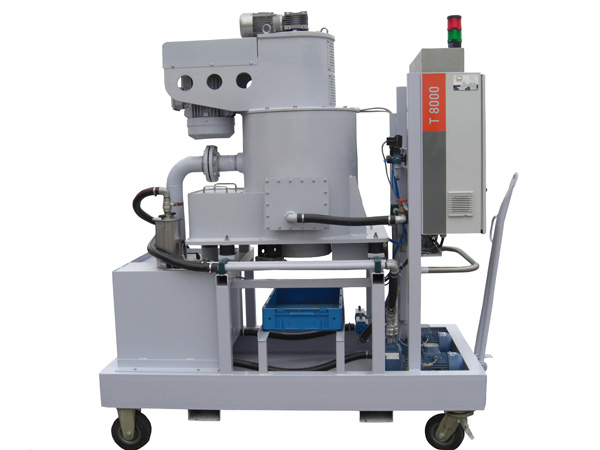

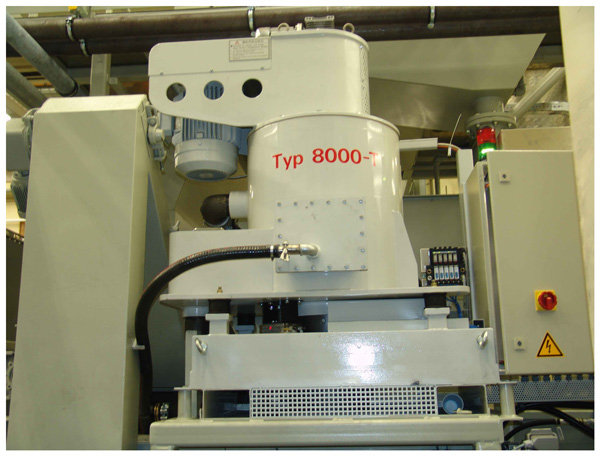

Model T 8000 -Drum Centrifuges
Specific Characteristics: Throughput up to 8000 l/h, Pre Filter 350 µm, Automatic Disludging, Handling via Siemens S7, Fully Automatic Process, Two Phase Separating, Adjustable Flow Rate.
- Fine cleaning >5µm
- No consumable filter materials required
- Semisolid sludge
- Also applicable for heavily contaminated media
Options
- Electrovalve for the feedback pipeline
- Switch cabinet-wiring-mark
- Custom Colour
Housing
Welded structure from steel 2-K-lacquer (NCS-S 2010-R70B)
Separator-System
Drum separator self-de-sludging 2-phases-separation, Medium-affected separator parts from aluminum, optionally high-grade steel available
Feed pump: centrifugal pump self-sucking Suction hose: Length 4,5 m, Ø 32 mm
Emptying system, cleaned medium
Submerged pump - level steered 4,5 m 4.5 m emptying hose, ø 32 mm
Switchgear cabinet
Equipment for automatic operation with stored program. control by Siemens S7 / 300, OP 7
Option
Sludge tank, mobile/tiltably with stacker latches
Documentation
Operation manual, spare part list, wiring diagram (in each case a copy into german)
