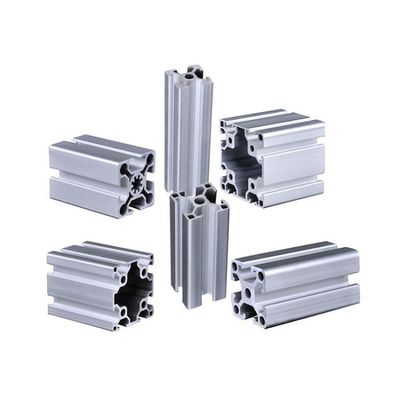

Model T-Slot -Aluminum Extrusion
T-slot aluminum extrusion is extremely useful for a wide range of framing applications. T-slot aluminum extrusion can be used for any number of structural applications, and require no welding or special tools for assembly. Frames built from aluminum instead of steel also benefit from the aesthetics of the metal, which needs no finishing and is attractive in its natural state. The T-slot aluminum extrusion Profile System has significant product advantages from construction to maintenance, it can choose different models according to the different structures and use of precision assembly. The industrial aluminum frame structure’s design must be combined with the physical properties of the raw materials products, selecting the corresponding industrial aluminum profile, to ensure the physical properties of the T-slot aluminum extrusion Profile System has a strong degree and are safe.
- CHAL provides the most complete, flexible, and easy-to-use T-slot aluminum extrusion framing system. Our unique product has proven itself in many sectors of industry through reliability and flexibility at the most reasonable prices.
| Alloy 1100, 3003, 6005, 6061, 6063 |
Finishing Anodized, powder coating, electrophoretic, PVDF and wood grain |
| Colors Diversified available |
Temper O/F/H/T5/T6 |
| Standard ASTM /GM |
As per the customer’s drawing, for stock specifications, please contact us to get the product list.
90 Series
T-slot aluminum extrusion is usually used for safety-guarding, testing, and inspection services to workbenches, machine frames, conveyors, CNC, and linear systems.
Weight: 6.20 kg/m.
Mass of Inertia: lx: 172.14 cm4 ly: 172.14 cm4.
Section Modulus: zx: 40.76 cm3 zy: 40.76 cm3.
T-slot width: 10.2 mm, T-slot height: 12.3 mm, Section size: 90 mm × 90 mm, Hole: φ10.2 mm, Wall thickness: 2.0 mm.
100 series
The T-Slot Aluminum Extrusion of the S10-100100 profile is 10.2 mm, ideal for heavy-duty applications where added strength and an additional T-slot aluminum extrusion are a must, when choosing accessories or fasteners, M10 is suitable. In addition, it can be connected with 50 series profiles and other parts such as handle, end connector, caster, etc. T-slot aluminum extrusion is widely used for building blocks, clean rooms, conveyors, CNC, and other frameworks.
Weight: 11.48 kg/m
Mass of Inertia: lx: 397.83 cm4 ly: 397.83 cm4
Section Modulus: zx: 81.36 cm3 zy: 81.36 cm3
T-Slot width: 10.2 mm
T-slot height: 12.3 mm
Section size: 100 mm × 100 mm
Hole: φ10.2 mm
Wall thickness: 6.0 mm
160 Series
Usually, it would be chosen to make an equipment rack or large-scale machine beams. It can connect with 80 Series T-slot aluminum extrusion profiles.
Weight: 18.69 kg/m
Mass of Inertia: lx: 1988.54 cm4 ly: 1988.54 cm4
Section Modulus: zx: 257.13 cm3 zy: 257.13 cm3
T-slot Width: 8.2 mm, T-slot height: 12.3 mm, section size: 160 mm × 160 mm, 4 marginal holes: φ6.8 mm. Wall thickness: 4.5 mm
