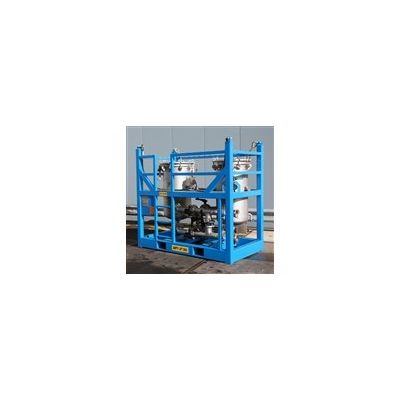

Model TDW -Dual Vessel Cartridge Unit
Our Dual Vessel Cartridge Unit (TDW) is the most commonly used filter cartridge unit in the oilfield industry. This, offshore proof, skid-mounted filter unit can be supplied as a cartridge, bag or combination unit, equipped with all necessary valves and safety features. Our Dual Vessel Cartridge Unit offers the most cost-effective way to clean-up all possible oilfield fluids. It allows you to simultaneously filter with one vessel and easily change the used cartridges.
Most popular related searches
skid-mounted filter
hazardous liquid
pipe flange
fluid filtration
pump system
filter cartridge
butterfly valve
cartridge filter unit
forklift safety
flanged pipe
Technical Specifications TDW 610-50/40 TDW 610-50/40-4B
- Number of Cartridges per vessel 50 50
- Number of Bags per vessel 0 4
- Maximum working pressure 101.5 psi (7 bar) 101.5 psi (7 bar)
- Maximum working temperature 158 °F (70 °C) 158 °F (70 °C)
- Maximum Design pressure 18 bbl/min (172 m3/hr) 18 bbl/min (172 m3/hr)
- Standard serial/parallel configuration.
- Standard TDW 610 type: 50 cartridges per vessel.
- Suitable for non-hazardous fluids (Fluid Group 2)
- Innovative push lever and swing-away vessel lid, easy to operate.
- Swing-bolts and nuts for quick opening.
- Self sealing, service friendly cover gasket.
- 4" Butterfly Valves (SS-Disk). Easy to operate.
- Certified hoisting slings lifting lugs and forklift pockets.
- Safety valve set at 101.5 psi (7bar).
- Offshore DNV 2.7-1 / EN12079 frame.
- ASME Vlll design
- High pressure (10 bar).
- Other construction materials.
- Other cartridge configurations.
- High Flow 6" piping
- Flanged connections
- Integrated C-Pump
