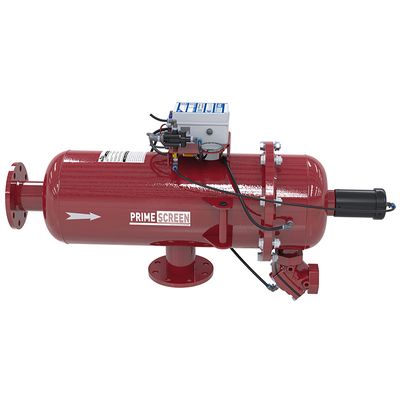

Model TFS-MP Serials -Automatic Screen filter

Main Specifications: Filter Technology: Screen. Filter Component: AISI 316Low carbon wiremesh and PA6GFR30 enforced rip structure. Body Equipment: S235JR Carbon steel. Backwashing Process: automatic Electronic/BHydrolic activator(DC/AC) i. Filtration Grade: 80 - 100 - 130 - 200 - 300 - 500 - 800 - 1000 -1500 - 2000 - 5000 micron. Cleaning Process before Coating: Chemical cleaning. inside-outside coating: Electrostatic polyester-Epoxy powder coating. Connection types: Threaded (BSP, NPT) ve Flange(ISO, ANSI). Max. working pressure: 10 Bar (145 psi). Min. working pressure: 2 Bar (29 psi). Max. working temperature: 60°C (140°F). Controller System: Electronic(DC/AC) Time and Pressure Based Bluetooth Controller.
