Agricultural Filters - Automatic Screen Filters Ans Systems

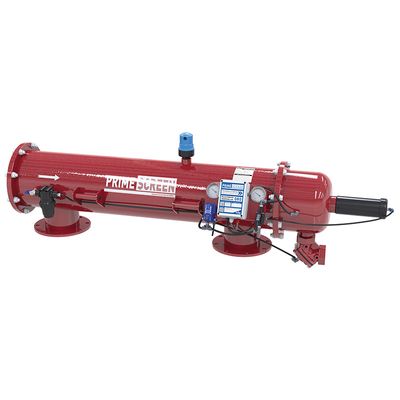

Model TFS-XLP Series - Automatic Screen filters

Main Specifications: Filter Technology : Screen. Filter Element: AISI 316L wiremesh and PA6GFR30 Reinforced rib structure. Body Material: S235JR Carbon Steel. Backwash Process: Automatic Electronic (DC/AC) controlled Hydraulic Driven. Filtration degree: 80 - 100 - 130 - 200 - 300 - 500 - 800 - 1000 -1500 - 2000 - 5000 microns. Pre-Coating Process: Chemical Cleaning. External and Internal Coating: Electrostatic Baked Polyester-Epoxy Powder. Connections Type: Threaded (BSP, NPT) and Flange(ISO, ANSI). Max. Working Pressure: 10 Bar (145 psi). Min. Working Pressure: 2 Bar (29 psi). Max. Operating Temperature: 60°C (140°F). Control System : Electronic (DC/AC) Bluetooth Controller with Time and Pressure Adjustment.

Model TFS-MP Serials - Automatic Screen filter

Main Specifications: Filter Technology: Screen. Filter Component: AISI 316Low carbon wiremesh and PA6GFR30 enforced rip structure. Body Equipment: S235JR Carbon steel. Backwashing Process: automatic Electronic/BHydrolic activator(DC/AC) i. Filtration Grade: 80 - 100 - 130 - 200 - 300 - 500 - 800 - 1000 -1500 - 2000 - 5000 micron. Cleaning Process before Coating: Chemical cleaning. inside-outside coating: Electrostatic polyester-Epoxy powder coating. Connection types: Threaded (BSP, NPT) ve Flange(ISO, ANSI). Max. working pressure: 10 Bar (145 psi). Min. working pressure: 2 Bar (29 psi). Max. working temperature: 60°C (140°F). Controller System: Electronic(DC/AC) Time and Pressure Based Bluetooth Controller.

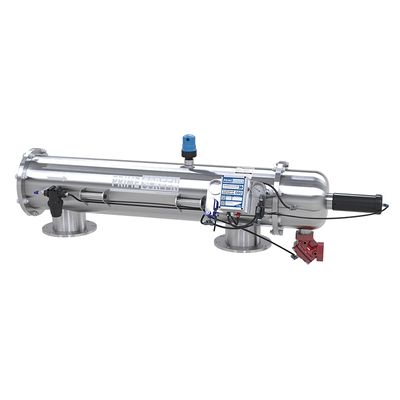

Model TFX-XLP Series - Automatic Screen Filters

Main Specifications: Filter Technology: Screen. Filter Element: AISI 316L wiremesh and PA6GFR30 Reinforced rib structure. Body Material: S235JR Carbon Steel. Backwash Process: Automatic Electronic (DC/AC) controlled Hydraulic Driven. Filtration degree: 80 - 100 - 130 - 200 - 300 - 500 - 800 - 1000 -1500 - 2000 - 5000 microns. Pre-Coating Process: Chemical Cleaning. External and Internal Coating: Electrostatic Baked Polyester-Epoxy Powder Paint Connections Type: Threaded(BSP, NPT) and Flange(ISO, ANSI) . Max. Working Pressure: 10 Bar (145 psi). Min. Working Pressure: 2 Bar (29 psi). Max. Operating Temperature: 60°C (140°F). Control System: Electronic (DC/AC) Bluetooth Controller with Time and Pressure Adjustment.

Agricultural Filters - Hydrocylones and Seperators

PrimeCyclone Separator

Main Specifications: Filter Technology: Cyclone-Disc. Body Material: S235JR Carbon Steel. Drainage valf: Manual. Filtration Grade: 130 micron. Pre-coating: Chemical cleaning. External and Internal Coating: Electrostatic Baked Polyester-Epoxy Powder Paint, according to demand it can be manufacture hot dipped galvanzied. Connection types: Victaulic, Threaded(BSP, NPT), Flange(ISO, ANSI). Max. Working Pressure: 8 Bar (116 psi). Min. Working Pressure: 1 Bar (21,7 psi). DP(pressure loss): 0.5 – 0.9 Bar (7 – 13 psi).
