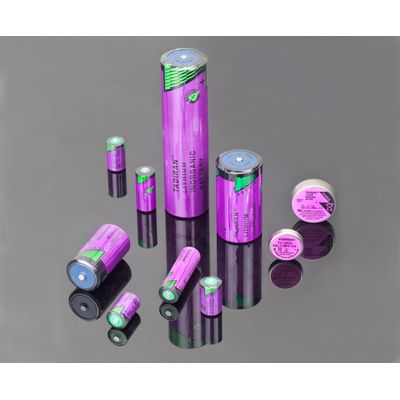

Model TL-5955 - Cylindrical Cells

Model TL-5955 -Cylindrical Cells

FromTadiran U.S. Battery Division

SHARE

Technical Data: Nominal capacity @ 1.3 mA, to 2 V 1.5 Ah, Rated voltage 3.6 V, Maximum recommended continuous current 75 mA, Maximum pulse current capability 150 mA, Weight 12.5 g (0.441 oz), Volume 5.2 cc, Operating temperature range -55 ºC to +85 ºC, Li metal content approx. 0.5 g, U.L. Component Recognition, MH 12193

Most popular related searches

automatic meter reading

utility metering

security system

meter reading system

3.6 V Primary lithium-thionyl chloride (Li-SOCl2)
Fast voltage recovery after long term storage and/or usage
High energy density
High and stable operating voltage
Low self discharge rate
Bobbin construction
Hermetic glass-to-metal-sealing
Non-flammable electrolyte

Utility meters (elect., water & gas)
Automatic meter reading
RF systems
Sensors & monitoring systems
Tracking systems
Wireless security systems
Automotive electronics
Industrial electronics
Ultra Low Power (ULP)
