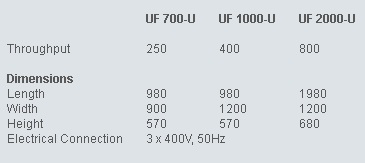

Model UF 700 - 2000 -Filtration

The filter system is particularly suitable for metalworking, with graphites, with aluminium etc., in chemistry, in the food branch as well as at washing plants.

Operation mode:
The liquid is distributed by the cascade intake box on the filtering medium. A level of liquid develops, the level of liquid rises because of increasing contamination of the filter fleece and the infeed of the filter fleece is activated. The dirty filter fleece is drawn up whereby the filter cake is separated from the filter fleece. Thus there are less disposal costs and 100% utilisation of the filter material. If the filter fleece is used up, a message for the filter fleece change is promptly reported.

The device works in the fully automatic enterprise. Only the fleece must be changed manually. Furthermore, it is simple to maintain the device.

Because of most extensive renouncement of installation of wearing parts a very long durability is reached.

The device is suitable for liquids up to a temperature of 100° C.

Equipment:
Float switch for pure tank
Pure tank (contents as required)

The MKR stationary vacuum band-pass filtration technique effectively eliminates solid particles (e.g. aluminum swarf, cast iron and grinding sludge) from water-miscible coolants and cutting oils.

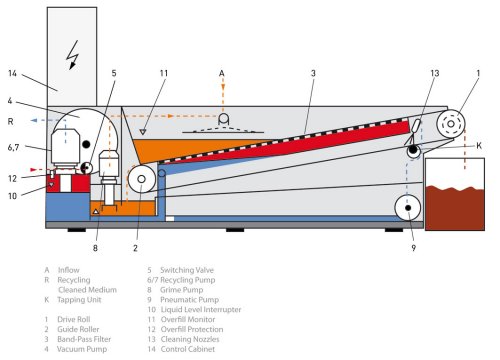

Functional principle of the vacuum belt filters

MKR Vacuum belt filters are for the permanent cleaning of the liquid. The filter transibility is 40 - 80 µm depending on the structure of the of the filter cake. The vacuum belt filter consists of a circulating belt filter, which is cleaned by high-pressure nozzles after every cycle. The vacuum belt filter works fully automatic. The sludge is removed from the plant in a nerly dry condition.
