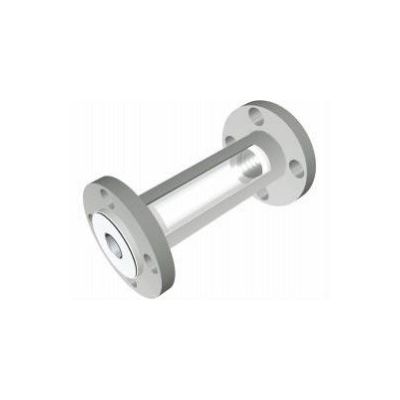

Model UFSS -Armored Sight Flow Indicators

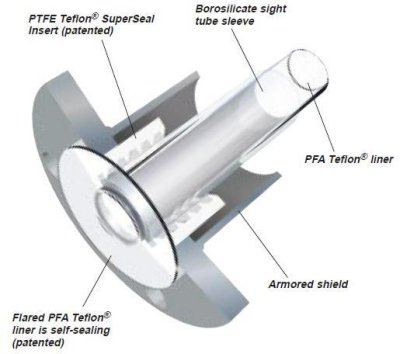

Approved by the Factory Mutual System. Available in any length up to 72 inches. Stock lengths are 8 and 12 inches. Unobstructed visibility. Patented one-piece SuperSeal inserts are self-sealing. Wetted part is one-piece PFA Teflon, flared over SuperSeal insert. Available with sanitary fittings. Threaded end connections are available. Design is double sealed. Excellent for corrosive, viscous, or sanitary service. Sight tube sleeve can be calibrated directly. Custom designs available; consult factory. Optional 304 or 316 SS construction. ANSI Class 300 lb flanges available.
