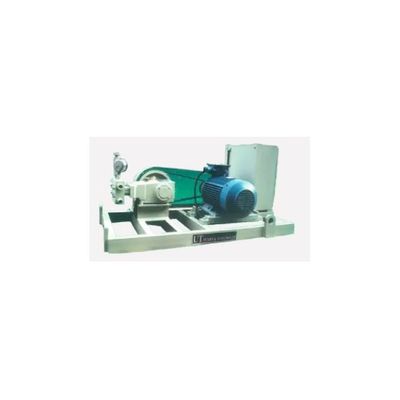

Model UTPS 4500 -High Pressure Pumps

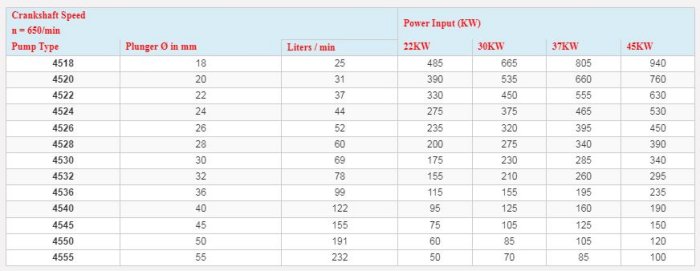

Pressure Range: Up to 940 Bars. Capacity Range: Up to 232 LPM. Performance Characteristics: As per VDMA 24284, Gr. II CL II, Inlet Connection: 2"X R3". Discharge Connection: M24 X 1.5, M30 X 1.5, M38 X 1.5. Technical data is based on 100% volumetric efficiency and 20°C Amb. Temp. The Right to Technical changes is reserved.
