UT Pumps & Systems Private Limited - A brand of Ingersoll-Rand, Inc. products

Operating Pressure up to 24 Bars. Maximum Flow 200 M3/Hr. Operating temperature up to 150?. Can Handle Fluid with viscosity up to 1,00,000 Cst. Pumps available with Gland packing or Mechanical seals.

Twin Screw Pumps are self-priming, double ended positive displacement pumps with external timing gears and bearings. Their design provides complete axial balancing of the rotating elements and eliminates all metal-to-metal contact within the pump, making them suitable for dry running. In addition with extremely low NPSH requirement they are ideally suited for decanting applications.

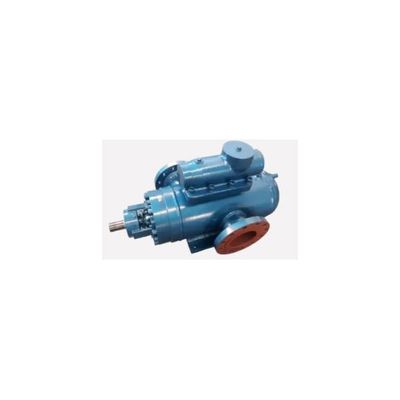

Triple Screw Pumps with external or internal bearing are available in horizontal or vertical constructions, with or without heating arrangements and have single mechanical seals for shaft sealing. They handle all neutral lubricating liquids,have a compact space saving design and are self priming. Due to the precise manufacture of the screws and their profile, the possibility of getting a high suction lift is ensured.They operate continuously and run noiselessly.

Pressure Range: Up to 940 Bars. Capacity Range: Up to 232 LPM. Performance Characteristics: As per VDMA 24284, Gr. II CL II, Inlet Connection: 2"X R3". Discharge Connection: M24 X 1.5, M30 X 1.5, M38 X 1.5. Technical data is based on 100% volumetric efficiency and 20°C Amb. Temp. The Right to Technical changes is reserved.

UTPSL offers High Pressure Triplex Plunger Pumps for a wide variety of industrial applications. Products of intensive research and development, the UTPSL series plunger pumps are designed to achieve high standards of performance and reliability to withstand continuous duty operations & guarantee smooth and trouble free performance.

The most versatile heavy duty compact machine with provision for generating hot water/ Steam at high pressure for effective cleaning of surfaces with oil, grease paint etc. The machine is supplied with accessories such as High pressure Hose, High pressure gun, flow control valve and special nozzle for a wide range of applications. Machine consists of heavy duty, low speed, long life- six plunger pump driven through electric motor and mounted on a portable trolley.

Removal of Paint from Paint shop grits is being done manually by the following conventional methods which are time consuming and not effective. Removing the grits from paint booth. Transport the grits from paint booth to a distant place (As it involves lot of pollutions). Burning / Scrapping the grits. Wash the grits with water. Transport back the grits to paint booth. Fix the grits in the paint booth.

The scale on steel surface is being produced due to oxidation of base material during re-heating of the billet / material. To prevent this layer from fusing into base material during rolling process, De-scaling system is used. The scale gets loosened when High pressure water jet strikes the surface between scale and base material with high pressure through strategically placed nozzles at different angular positions causing cooling of scale. The loosened scale is washed away with water at High Pressure.
