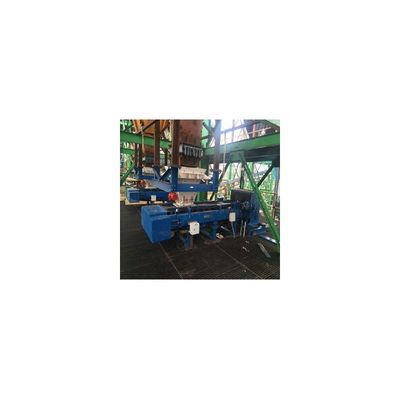

Model VEC - W -Weigh Feeder
We will take this opportunity to introduce VT CORP as a leader in the field of Industrial weighing and bagging machines and material handling equipment for last 40 years. Our heavy duty Weigh Feeder offers accurate weigh feeding of a variety of demanding industrial applications with high feed rates. Its unique design allows the belt to be changed with minimum downtime, and its heavy-duty construction provides larger pulleys and a very sturdy and rugged frame for increased accuracy in high-rate, heavy-duty applications. These features work together to augment the performance of your process and improve your bottom line. Every feeder is designed to meet the specific needs of the application. We work closely with our customers to ensure that each system meets their expectations for performance and dependability. Our weigh feeders can accommodate flow rates up to 2000 TPH, and belt widths up to 2400 mm.
- Model: VEC - W
- Type: Microprocessor based
- Housing: Cast Aluminium
- Display: 4 lines, 20 characters alpha-numeric LCD with LED
- Front Keypad: Membrane foil with pressure sensitive keypad
- Operating Temperature: 0° C to 50° C
- Digital Inputs: 8 Nos. Expandable to 16
- Digital Outputs: 8 Nos. Expandable to 16 optically isolated
- Analog Inputs: 2 No. galvanically isolatelo(4 – 20 mA optically isolated)
- Analog Output: 2 Nos. Galvanically isolated
- Serial Inerface: RS 232/RS 485
- Capacity: 1 to 2000 TPH
- Belt Width: 600 to 2400 mm wide
- Pulley Centres: 1800 to 2400 mm
- Control Range: 1 : 10
- Type of material handled: Lumpy, Granular, Sticky & fine
- Infeed Hopper: Designed as per material characteristics
- Liners: Optional
- Weight Sensing: By Dual Loadcell weighing Mechanism
- Speed Sensing: Digital Contact less tacho
- Belt Cleaning Mechanism: Internal & External Scrappers
- Type of Motors: AC 3 Phase
- Drive Mechanism: Direct coupled shaft mounted drives
- Speed Control: AC variable speed drive / DC thyristor drive
- Electronic Controller: Dedicated controller
- Accuracy: +/- 0.5% on the set point in control range
Design:
- Very Sturdy and Rugged Frame Design
- Quick Belt change mechanism ensures very low down time.
- Designed for capacities from 1 to 2000 TPH
- Unique Dual Load cell design for accurate weighing
- Feed control inputs from Driving as well as Driven pulleys to ensure Precise feed rate.
- Accuracy as high as + 0.5% on the set point
- Our Electronic controller ensures trouble free interface with the plants processes and control system.
- Specially developed Software offers seamless integration with PLC or PC
Service
Support of the customer does not end once the equipment is sold. It is the beginning. With after-sales support being the cornerstone of our business philosophy, we offer prompt and efficient after sales service.
