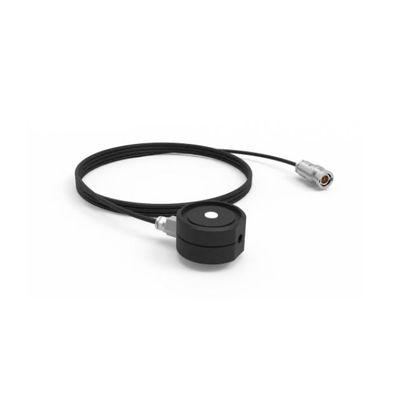

Model VL-3702 -Illuminance Detector Head
The VL-3702 is an illuminance detector head whose photometric responsivity and cosine field of view correspond to the DIN 5032 - Article 7 quality class B. The detector can be combined with all optometers and light meters from Gigahertz-Optik.
Most popular related searches
illuminance detector
UV-VIS/NIR
light meter
UV-VIS detector
photopic illuminance
VIS-NIR
traceable calibration
UV-VIS
calibration laboratory
UV radiometer
Detector head for the measurement of photopic illuminance in Lux [lx]. Class B, f1 ≤ 6 %
- f1 ≤ 6 %
- f2 ≤ 3 %
- 0.5 nA/lx
- 20 mm height
- for the usage with Optometers and amplifiers, calibration certificate
The VL-3702 is calibrated in terms of its absolute illuminance responsivity and relative spectral responsivity by the Gigahertz-Optik calibration laboratory for optical radiation measurands. The calibrations are documented in an individually compiled calibration certificate. The design and contents of the calibration certificate are in accordance with the ISO 17025 specifications.
