Model WSI-G-3000 -Grey Water Recycling Unit

The Grey Water Recycling unit consists of the following major components:

• Xerxes 1500 gallon tanks
• Vacuum bubble technology aeration system
• Clarus Environmental Pressure Effluent Filter
• Chlorination System
• Zoeller submersible pump

The unit is designed for:

• Quick and easy underground installation
• Modular expansion capability based on demand
• Recycling up to 3000 gallons of water per day

• Xerxes RST II 1500 Gal. Tank - Constructed of long-lasting, rustproof fiberglass, 1,500- gallon size each, Manufactured with high-quality isophthalic/terephthalic polyester resin, integral ribs for superior structural strength, lightweight and easy to install in hard-to-reach locations, 24- inch access risers.
• Vacuum Bubble Technology Aeration System - cutting-edge technology that generates very fine bubbles, much smaller than traditional blowers. These smaller bubbles better promote the growth of bacteria that break down the waste in the water.

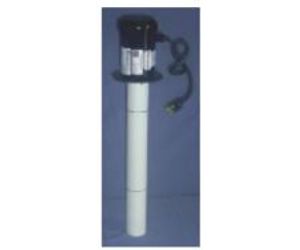

• Clarus Environmental Pressure Effluent Filter – Filters the grey water down to 100 microns.
• Chlorination System – Disinfects the grey water by chlorine injection

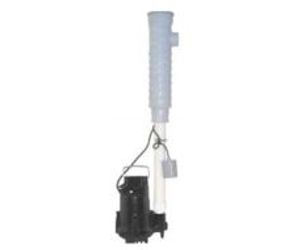

• Zoeller Model 161 Submersible Pump – Will pump and pressurize the grey water up to 50 ft of total dynamic head and up to 20 gallons per minute to feed toilets for flushing

Quick Facts

• Quick installation & setup
• Saves 3000 gallons of H2O Daily
• Modular expansion capability
• Filters down to 100 microns
• Disinfects through Chlorination
