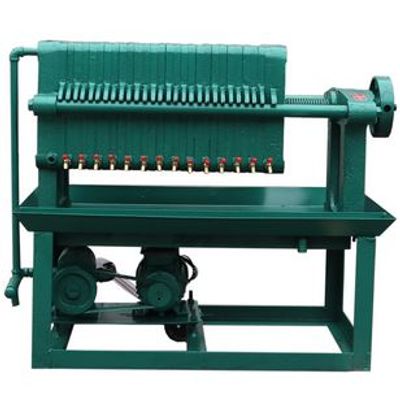

Model YBLL320×14 - Plate Frame Oil Filter

From

0

YBLL320×14 plate frame type oil filter machine produced by our factory adopts the gear pump to draw crude oil. As the filtering supporting equipment of various types of oil press machine, it mainly used for the separation of crude oil and residue. This machine also is widely used for liquid filtration in food processing, chemical industry and other field. it is rational in structure, convenient in maintenance and debugging, easy to operate, and is well received by users.

  • Model YBLL320*14
  • Processing capacity(t/24h) 180L/h
  • Main electromotor power(kw) 0.75
  • Weight(kg) 350
  • Measurement(mm)(L*W*H) 1150*530*870

  • Item YBLL320×14
  • Processing capacity(kg/h) 180
  • Filtration area(m2) 2.64
  • Plates quantity(pcs) 14
  • Main electromotor power(kw) 0.75
  • Measurement (mm) 1150x530x870
  • Work pressure (mpa) 0.35
  • Weight(kg) 350
