Model ZS11 Series -Drilling Mud Shale Shaker
ZS11 Series Shale Shakers is configured with four, three or two screen panels. ZS113 ZS114 shakers’ screens are interchangeable with Mongoose screen replacement (1165x585mm) which allows users to easily source the screen panels locally or aboard. This can reduce rig down time due to the lack or not-prompt supply of screen panels.
The purpose designed shale shaker is an absorption of advanced technologies at home and abroad. It has very strong structure and excellent separation result. Being operating in more than 35 countries and regions, the shaker is reliable and trustful for your choice.
- Heavy duty design and heat treatment for complete shaker deck
- Adjustable Linear Motion G force, meet with more application requirement.
- Mechanical drive shale shaker deck angle adjustment while working from -2° to 5°
- Wedge screen locking system for fast screen change
- Fit in with API shaker screen interchangeable with Mongoose frame screens.
- Rubber sealing system on shaker deck.
- Rubber covered dumping spring allows shaker a safety operation and less noise.
- Various feeders available for different applications: Weir Type, Header Box Feeder, and Hopper feeder.
- Martin Vibration Motors or Italy OLI brand vibration Motors
- Electric components for control panel from Brand SIEMENS or Schneider.
- Ball blasting and 3 layer epoxy anti-corrosion painting
The linear motion shale shaker is designed for oil and gas drilling, horizontal directional drilling applications, which is the first phase solids control equipment of the drilling mud system, followed by Mud Cleaner (desander, desilter), Decanter Centrifuge.
Twin or triple drilling mud shaker units with flow divider are available for oilfield operation.
Drilling Mud Shale shaker is the fundamental mechanical screening machine in the solids control process. Our heavy duty linear motion shale shakers are able to working for all onshore & offshore drilling activities.

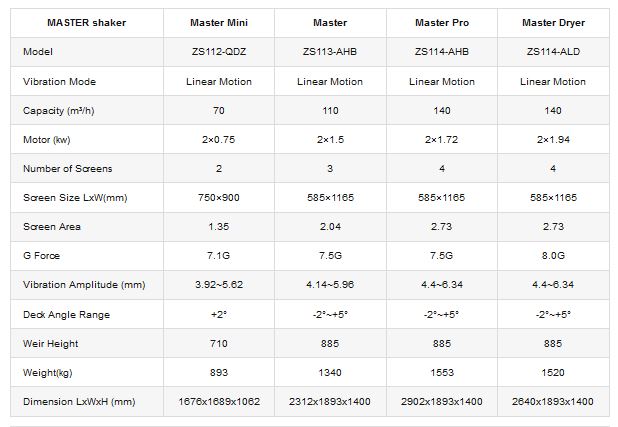

The drilling mud shale shaker is the first phase solids removal equipment used in the drilling mud circulation system. The Master Series shale shaker are dual-motor, high frequency, linear-motion vibrating screen machines designed for fine particle separation in the oil and gas drilling mud circulation and waste slurry separation industry. It may differ in the number of screen panels and sizes according the drilling site requirement.
