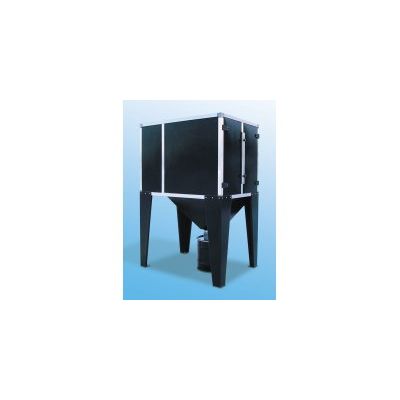

Fumex - Model CF Series -Modular Dust Filter with Automatic Compressed Air Cleaning

CF has been developed for airflows of 1,000 – 84,000 m³/h and has a modular design.

• Each module consists of four or six cartridges
• Several modules can be easily combined to produce larger units
• Easy to expand a system to meet future needs
• Reduced investments costs when expanding
• Requires less space than many other dust separation systems
• Saves on valuable production space
• The filter cartridges are optimised for maximum filter surface relative to cost

The filter cartridges are cleaned automatically by a blast of compressed air. The cleaning is programmed for need-based cleaning during operation, but also for cleaning when the system is not running.

Design

• The filter comprises a framework of aluminium profiles and insulating panels to provide good heat insulation and a lower noise level
• The filter is supplied from the factory fully assembled for rapid installation
• Delivery of the filter includes
• Filter cartridges with a separation efficiency of > 99.9 % (DIN/EN 60335-2-69)
• Stand
• Dust container
• Control equipment for automatic cleaning
