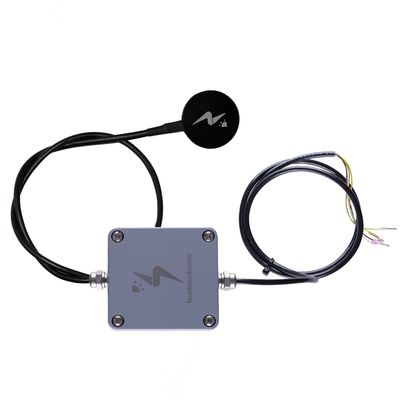

SEVEN - Model 3S-MT-PT1000-MB -Module Temperature Sensor-PT1000 with Modbus Output
Module temperature sensor measures the back of the solar panels temperature in degrees Celsius (°C) by using a PT1000 probe. The probe, used to measure the Back of Module Temperature, is placed between two Backsheet with EVA sheet. In order to communicate via Modbus RTU Protocol, a transducer is used to convert PT000 to Modbus RTU. This Module Temperature Sensor Model is compatible with all Dataloggers and PLCs with RS485 input port.Most popular related searches
- Item Code: 3S-MT-PT1000-MB
- Sensor Type: PT1000
- Measuring Range: -40°C to +85°C
- Accuracy: ± 0.1°C
- Resolution: 0.1°C
- Data Output: RS485 up to 38400 Baud
- Communication Protocol: Modbus RTU
- Power Supply: 12 to 30 V DC
- Power Consumption: 15 mA @ 24 V DC
- Electrical Connection: 3 m LIYYC11Y PUR Cable, UV and Weather Resistant
- Operating Temperature Range: -40°C to +85°C
- Box Dimensions: 80 x 82 x 55 mm (W x L x H)
- Sensor Cover Dimensions: Ø 35 x 3 mm
- Weight: 417 gr
- IP Rating: IP 67
- Box Material: ABS
- Sensor Cover: Laminated Backsheet (EVA – Tedlar)
- Mounting Method: 3M Sticker to Back of Module
- Standard: Class A according to IEC 60751:2022
