Mono-In-Line Basket Strainer

SHARE

The Mono-In-Line Basket Strainer contains a single strainer basket for particle removal in permanent applications, suitable for mounting in horizontal pipelines and available with quick release or bolted cover options.

Most popular related searches
basket strainer
inline strainer
strainer
filter strainer basket
filter strainer
strainer filter
strainer basket filter
basket filter

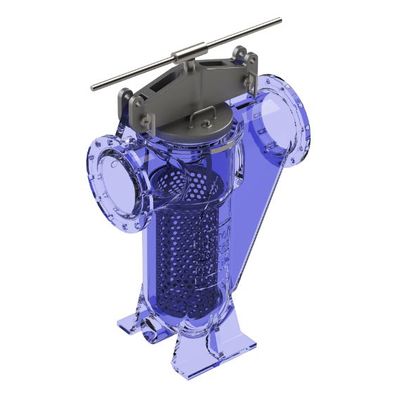

The Barton Firtop Mono-In-Line Basket Strainer

Our standard design is of cast construction. We hold a vast stock with quick release and bolted cover options. The single strainer basket is constructed from perforated plate and lined with a mesh wirecloth for finer filtration when required. Our standard design has larger filter area than most models available on the market, giving higher dirt holding and longer service life between cleaning cycles.

Size / Rating / Materials

  • 1” NB (DN25mm) to 12”NB (DN300mm) – for larger sizes click link
  • ANSI/ASME Class 150# up to API 15,000 (Quick Release Options for ANSI 150# - 600# ratings available as standard)
  • Materials from Stock: Carbon Steel & Stainless Steel
  • Materials on request: Duplex & Super Duplex Stainless Steel, 6Mo, Aluminium Bronze, Exotics (Alloy 625/ Alloy C276, Titanium etc.)
