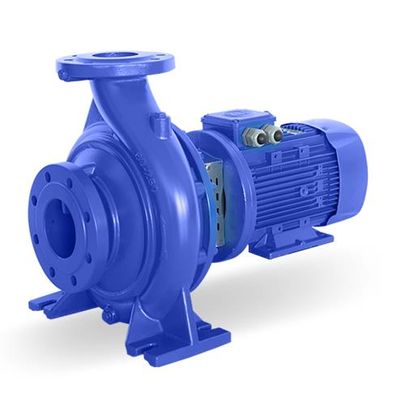

Sempa - Model TKF-M Series -Monoblock Pumps
Discharge Flange : DN 32 – DN 150. Capacity : up to 500 m³/h. Head : up to 100 m. Working Temperature : From -25 °C to +140 °C*. Casing Pressure (Pmax) : 10 bar (16 bar)*.
Most popular related searches
monoblock pump
end suction pump
centrifugal pumping
centrifugal pump
suction pump
air conditioning
water treatment
flanged pump
building drainage system
stainless steel pump
- Monoblock centrifugal pumps with horizontal shaft, volute casing, single stage, end suction and closed impeller.
- The main dimensions of the housing comply with EN 733 standards.
- Design according to EU 547/2012 energy rating.
- Suction and discharge flanges according to EN 1092 2 / PN 16. Flanges are suitable for EN 1092 1 / PN 16 in pumps with steel or stainless steel body material. Pumps could be produced with ANSI / ASME flanges optionally.
- Pumps are used with electric motors of high efficiency class according to IEC structure sizes.
- All impellers are balanced dynamically or statically according to ISO 1940 class 6.3.
- The axial force is balanced with the wheel balancing holes system.
- The direction of rotation is clockwise by the engine.
- Monoblock pumps are smaller and lighter than the same hydraulic centrifugal pumps.
- Optionally, pumps can be manufactured with wear ring and / or shaft bushings.
- The pump shaft is connected to the motor shaft with a plugin shaft or rigid coupling. The axial and radial forces of the pump have covered by the motor bearings.
- Agricultural Irrigation and Drainage
- Building System
- Marine
- Food and Beverage Industry
- Heating, Ventilating and Air Conditioning
- Water Treatment and Pressurization
