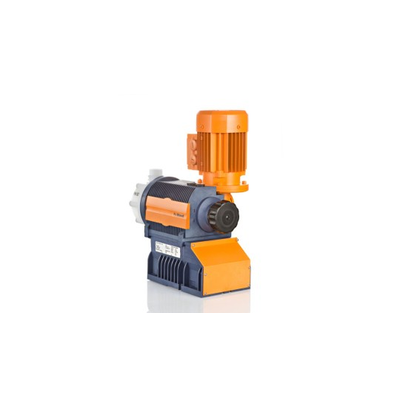

ProMinent - Model Sigma/ 1 (Basic Type) -Motor-Driven Metering Pump

The robust pump for safe and reliable use

The Sigma/ 1 diaphragm metering pump, together with pumps of type Sigma/ 2 and Sigma/ 3, represents an integrated product range. They cover the capacity range from 17 to 1,030 l/h, with a consistent operating concept, control concept and spare parts management. A wide range of power end versions is available, including some for use in areas at risk from explosion.

Excellent process reliability:

• In the event of an accident, the feed chemical does not escape to the outside nor into the pump`s power end, thanks to the patented multi-layer safety diaphragm with optical (optionally electric) signalling
• Integrated relief valve protects the pump against overloading


Flexible adaptation to the process:

• The entire Sigma product range is available as standard in a "Physiologically safe in respect of wetted materials" design.
• Metering pumps with electro-polished stainless steel metering head and EHEDG certification enable them to be used in hygienically challenging applications.
• Adaptation to specific installation situations, as the "Liquid end on left" is available as standard.
• Wide range of power end versions, also for use in ATEX areas and different flange designs for the use of customised motors.

The following list of applications are general examples of generally suitable applications for this product. Please contact your local sales representative to talk about the applicable use of this product in your specific case / environment.

• Volume-proportional addition of chemicals in water treatment, e.g. sodium-calcium hypochlorite for the disinfection of potable water
• Addition of chemicals depending on the measured value, e.g. metering of acid and alkali for pH neutralisation in wastewater treatment
• Time-controlled addition of chemicals in the cooling water circuit
• Pulse-controlled metering in the bottling of different volumes e.g. glycerin filling of manometers
