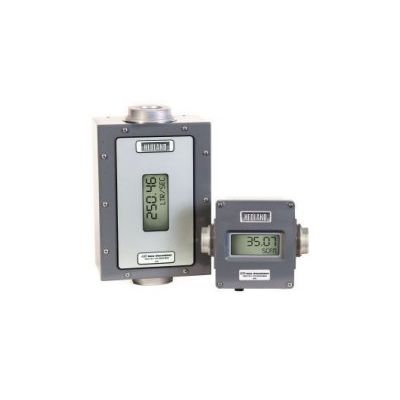

Hedland - MR Flow Transmitter

MR Flow Transmitter; Operate as part of a totally integrated electronic process control/data acquisition system. Digital flow rate and total flow indication. Proportional analog outputs for electronic integration. Non-contact sensor electronics. In-field compensation for — specific gravity, pressure and temperature. Flow ranges: 3 - 25 SCFM (2 - 12 L/SEC) up to 80 - 800 SCFM (50 - 350 L/SEC). Construction: T316 stainless steel. Sizes: 1/4 to 1-1/2 inch ports. Ports: SAE, NPTF and BSPP. Pressure up to 1,500 psi (103 bar) maximum. Temperature up to 240 °F (116 °C). Accuracy ±2% full scale. Repeatability ±1%.
