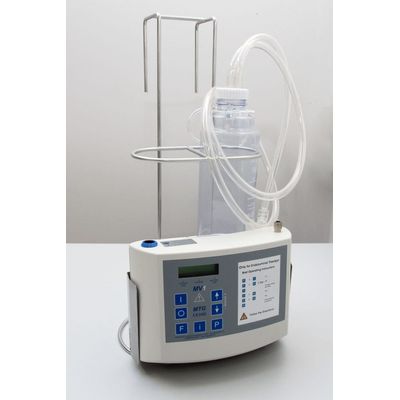

MTG - Model MV1 -Mobile Programmable Low-Vacuum System
The new powerful electronically controlled mobile low vacuum system offers a great range of applications independent of fixed vacuum and power supplies: Apart from typical mobile post-operative pleura care, the new and more powerful system can be used for further appliances, which require e.g. a higher vacuum or special programme sequences. A maximum vacuum of -550 mbar and a totally free programmability open up a very broad field of applications as well as a high individuality. The vacuum system consists of a powerful low vacuum suction pump, a single-use system of secret bottles, vacuum tubes and bacteria filter. The system is supplemented by a set of pump and bottle holder to fix pump and bottles at any hospital bed.
- Maintaining vacuum in the pleura after spontaneous pneumothorax
- Wound drainage, Redon drainage, suction of body secretion
- Transport suction
- Customized programmes for additional applications
- Pressure loss or unreached set vacuum level
- Bent vacuum tubes
- Full secretion container
- Low battery voltage
- Intuitive, easy handling – small and light.
- Low Noise operation / long battery operation.
- Easy and early mobilisation of patients: Reduces work load for hospital staff.
- Reduced danger of contamination as disconnection/ change of device unnecessary.
- Cost efficiency due to individual and adequate secretion containers.
- Cost savings for single use system and it´s disposal compared to other systems.
- Increased client satisfaction.
Maximum Vacuum: -550 mbar (Limitation by program)
Absorptive capatcity: 3,8 l / min
Maximum operating time on batteries with 100% pump power-on time: > 4 hours (new accumulator pack))
Maximum operating time on batteries on normal operation (little air loss) (little air loss): > 8 hours (new accumulator pack)
DImensions (B x H x T): 200 x 150 x 70mm
Weight: 1070g
Mains adapter: Primary 100-240 V / 50-60 Hz; Secondary 12V / 2,5 A
Accumulator pack: Accumulator pack 12V 2100 mAh
Protection class: II
Vacuum adjustable: Program controlled
