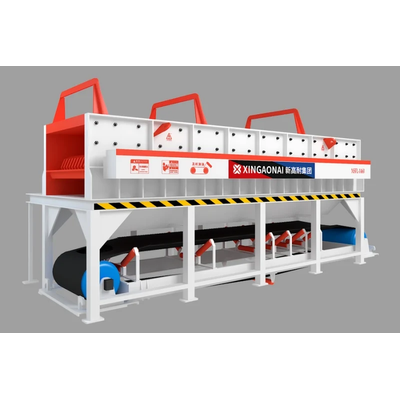

Xingaonai - Model NSFL Series -Mudstone Separation Equipment

SHARE

The debris separator is a mechanical device that can separate and screen raw materials of different models, sizes and shapes through the regular movement of the rollers. Adjusting the gap between the disc rollers can achieve reasonable and effective separation of raw materials with large differences in specifications, models and sizes. The distance of the control roller is used to control the size specification of the screened material, which is used to screen the garbage material that is lower than the size of the controlled roller.

Most popular related searches
high frequency vibrating screen
high frequency vibrator
hydrocyclone separation
can separator
vibrating screen
debris separator
construction waste
wet process system
water flow control system
water control system
Application areas:Mud and gravel separators are widely used in the separation and screening of different types of mixtures in mining, building materials, chemical industry, sand and gravel plants and other fields.

Applicable materials:Mud and gravel separator, also called multi-stage linkage roller screen, is suitable for coarse and fine separation of various materials that are difficult to separate, such as mud, soil, gravel, construction waste, etc.

Equipment highly customized

For materials that are not easy to separate, the effect is good, and it can be customized according to actual material needs.

Good separation effect

No pollution, low noise, large output, no material blocking, and cleaner separation.

Multipurpose

It can be used for feeding, screening and conveying. The lower part has a conveying device.

Energy efficient

Adjust the machine speed according to the actual working conditions.

The NSFL Series Mudstone Separation Equipment utilizes a combination of vibratory motion and hydrocyclonic separation to efficiently segregate mudstone particles from bulk materials. Its core mechanism involves a high-frequency vibrating screen deck paired with a controlled water flow system. Vibrations stratify materials, while hydrocyclones apply centrifugal force to separate fine mudstone particles from coarser fractions. Key features include modular sieve decks, adjustable inclination angles, and anti-clogging spray systems for wet processing.
