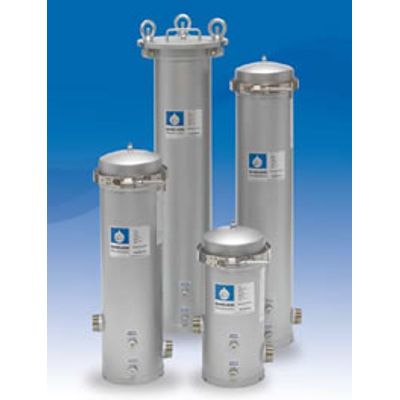

Shelco - Model 4FOS and 5FOS Series -Multi-Cartridge Filter Housings
Multi-Cartridge Housings for Light Commercial Applications. Heavy duty 304L or 316L Stainless Steel construction with Band Clamp or Swing Bolt Closure for maximum durability. Holds four (4) or five (5) cartridges to service a wide range of flow rates. Accepts double-open-ended style cartridges (222 and 226 style adapters optional). Maximum operating pressure: 150 PSI (10 bar) @ 300ºF (149ºC). Inlet and outlet connections: 2` MNPT (flanged, sanitary (TC), BSP and other options available). Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional).
- Designed for general purpose industrial and commercial filtration needs
- Heavy-duty 304L or 316L stainless steel construction for maximum durability and corrosion resistance
- V-band clamp or swing bolt closures for quick and easy cartridge change outs and secure sealing
- Holds four or five cartridges from 10” to 40” lengths for optimal choice of flow rates
- Accepts double open-ended (DOE) style cartridges (222 and 226 style adapters are optional)
- Knife edge seals eliminate bypass on DOE cartridge
- Adjustable top plate accepts variable length cartridges
- Wide range of options to meet specific filtration and installation requirements
- Water
- Desalination
- Chemicals
- Food & Beverage
- Electronics
- Oil / Gas
- Power Inks / Paints / Coatings
- Coolants
- Pulp & Paper
Maximum Operating Pressure
- 150 psig (10.3 bar) @ 300°F (149°C)
Inlet and Outlet Connections
- Inlet /Outlet: 2" MNPT
- Drain Ports: 1/2" FNPT
- Vent Ports: 1/4" FNPT
- Optional: MNPT, FNPT and BSP fittings, RF flanges, Sanitary ferrules and Grooved fittings
Materials of Construction
- Head and Shell: 304L or 316L Stainless Steel
- Connections: 304L or 316L Stainless Steel
- Closure: Clamp: 304L Stainless steel
- Swing Bolts: Zinc Plated Steel
- Vent and Drain Plugs: 304L or 316L Stainless Steel
Gaskets
- Buna N (FDA Grade)
- Optional: EPR, Silicone, Viton or Teflon Encapsulated Silicone
Finish
- Poly-coat on exterior surfaces
- Optional: Electro-polish, Glass bead or Passivate
Cartridge Type
- DOE style cartridges (maximum 2 3/4" OD)
- Optional: 222 and 226 adapters
Custom Options
- Gauge Ports or Gauge Ports with Pressure Gauges
- Mounting Tabs, Mounting Legs or Heavy Duty Mounting Legs
See Ordering Guide for complete selection of options
