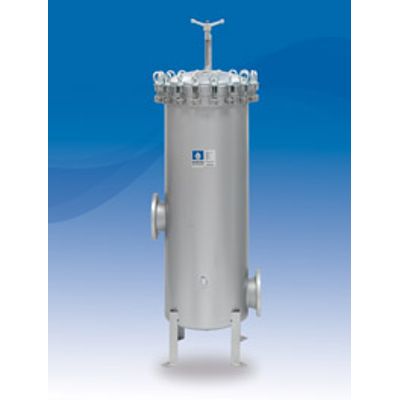

Shelco - Model 36FOS & 52FOS Series -Multi-Cartridge Filter Housings

• Designed for industrial and commercial filtration needs
• Heavy-duty 304L or 316L stainless steel construction with Swing Bolt Closure and Lifting Davit for maximum durability
• Swing bolt closure for easy cartridge change-outs and secure sealing
• Holds thirty-six (36) or fifty-two (52) cartridges to service a wide range of higher flow rates
• Accepts standard double open-ended (DOE) style cartridges (222 and 226 style adapters are optional)
• Knife edge seals eliminate bypass on DOE cartridges
• Top spring seals allow for cartridge length variations
• Flange inlet and outlet connections allow for easy piping Drain connections permit quick evacuation of housing
• Equipped with heavy-duty stainless steel mounting legs
• Exterior surface finish: Poly-coat over stainless steel (electropolish, other surface finishes are optional)

• Water
• Desalination
• Chemicals
• Food & Beverage
• Electronics
• Oil / Gas
• Power
• Inks / Paints / Coatings
• Coolants
• Pulp & Paper

Maximum Operating Pressure

• 150 psig (10.3 bar) @ 300°F (149°C)

Inlet and Outlet Connections

• Inlet /Outlet: 6" RF Flange
• Drain Ports: 3/4" FNPT
• Vent Ports: 1/2" FNPT
• Options: RF flanges, Sanitary ferrules, BSP,
• MNPT, FNPT and Grooved fittings

Materials of Construction

• Head and Shell: 304L or 316L Stainless Steel
• Connections: 304L or 316L Stainless Steel
• Vent and Drain Plugs: 304L or 316L Stainless Steel
• Mounting Legs: 304L Stainless Steel
• Swing Bolts: Zinc Plated Steel

Gaskets

• Buna N (FDA Grade)
• Optional: EPR, Silicone, Viton or Teflon Encapsulated Silicone

Finish

• Poly-coat on exterior surfaces
• Optional: Electro-polish, Glass bead or Passivate

Cartridge Type

• DOE style cartridges (maximum 2 5/8" diameter)
• Optional: 222 and 226 adapters. For 2 3/4"diameter cartridges… order as 32FOS or 50FOS housings

Custom Options

• Gauge Ports or Gauge Ports with Pressure Gauges

See Ordering Guide for complete selection of options
