AXON - Model JXTH -Multi-Channel Temperature Measurement System

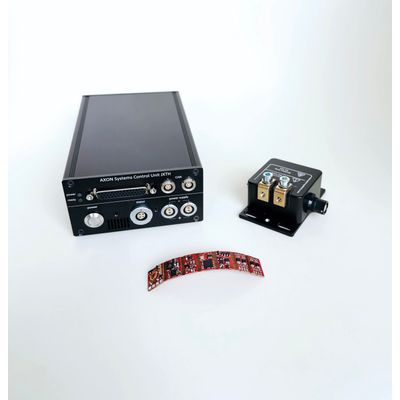

The AXON JXTH is engineered for high-precision, multi-channel temperature measurement in demanding environments, specifically utilizing thermocouples on rotating components. The system supports up to 16 thermocouple channels with an impressive measurement range from -55°C to 1250°C, offering high accuracy through 16-bit resolution. Integrated cold-junction compensation ensures reliable readings, while its contactless and wear-free design enhances durability against thermal, dust, and vibrational stressors. The system features analog and CAN bus output for versatile integration, and an anti-EMC option tailored for e-drive applications further broadens its utility. Key components of the system include the JXTH Rotor Unit for signal capture and data transmission, powered inductively, alongside a Stator Unit that powers the rotor and collects data. The JXTH Control Unit manages power and data outputs seamlessly, ensuring precise control over system parameters.
