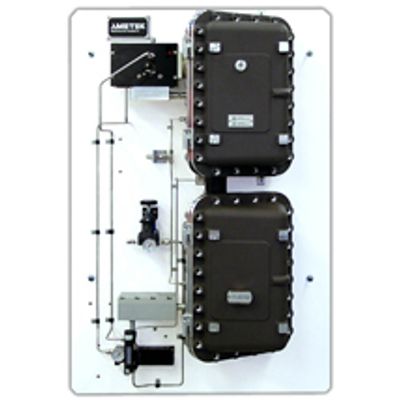

AMETEK PI - Model 932 -Multi Gas H2S Analyzer

The optical assembly in the 932 supports the simultaneous generation and detection of multiple wavelengths, enabling users to measure multiple analytes of interest, or even different ranges of a single analyte, with one analyzer.

Fully parts-compatible with the 9xx suite of sulfur recovery analyzers, the 932 provides a multi-gas monitoring and control solution for applications in the hydrocarbon processing industry.

DUAL BEAM DESIGN
The 932 uses a dual beam configuration, with one detector used as a reference to reduce drift. Span drift is further minimized through the use of a hollow cathode lamp that is extremely stable over temperature changes and/or time.

OPTIONAL TCD/INFRARED SENSORS
For the detection of species which do not absorb in the UV spectrum, the 932 may optionally use a thermal conductivity detector (TCD) for the measurement of hydrogen (H₂), or infrared sensors for the measurement of hydrocarbons or carbon dioxide (CO₂).

CONDENSATION SOLUTION
The 932 is available with a heated cell option for applications where sample condensation may occur. The fully integrated heated cell ensures reliable dew point temperature control without running the risk of plugging, contaminating, or flooding the analyzer.

The 932 is a UV multi-gas photometric analyzer for process monitoring and control – Find out more.

• Measure up to five species simultaneously
• Minimal sample conditioning
• Dual-beam, dual wavelength design
• Class I, Division 1 and ATEX II 2 G Hazardous Area Rating

• Methodology: Multiple wavelength, high resolution, non-dispersive UV/VIS
• Full Scale Ranges: ppm and % vol are standard, other ranges are available
• Accuracy:
• Standard range (UV): ±1% full scale of standard ranges*
• ±2.0% full scale of standard ranges for the H2S+NH3 application
• Optional (TCD) H2 sensor for TGTU applications: ±2% of full scale range
• Optional (IR) sensor for THC, CO2: application specific, consult factory
• Repeatability: Better than ±0.5% of full scale range*
• Linearity: Better than ±1% of full scale*
• Zero Drift: Better than 2% of full scale range, with auto zero disabled, over 24 hour period
• Speed of Response: Typically less than 30s to T90 (excluding sample system)
• Number of Gases: up to five
• Maximum Sample Cell Pressure:: 6.9 barg (100 psig)
• Maximum Sample Gas Temperature:: 165 oC (329 oF)
• Zero gas: Gas: Nitrogen or instrument air Liquid: Application specific

Typical Sample Flow

• Gas: 2.5 L/min (5 SCFH)
• Liquid: Application specific
• Sample Transport: Application dependant (options include Heated Acid Gas probe)
• Outputs: Up to 4 isolated 4-to-20 mA, loop or self-powered; 4 non-isolated 1 to 5 VDC; 5 independent sets of SPDT, Form C, potential free alarm relay contacts, 2 A at 240 VAC
• Digital Communication: RS485 Modbus port; RS232/RS485 service port
• Utility Requirements: 120 VAC (104 to 132 VAC), 47 to 63 Hz,
• Power Consumption: 500 W maximum (with heated probe and cell), sample lines or additional heated sample components not included
• Ambient Temperature: 0 to 50°C (32 to 122°F)
• Physical Dimensions: 1185 x 780 x 254 mm (46.65 x 30.7 x 9.97 in.)
• Weight: Approximately 145 kg (320 lbs)
• Approvals and Certifications:
• • CEC Class I, Division 1, Groups C & D; Ex d IIB T3
  • NEC Class I, Division 1, Groups C & D; AEx d IIB T3
  • ATEX II 2 G EExd IIB T3
  • Russian Ex Proof Certification; 1ExdIIBT3 X
  • Russian Gosstandart Pattern Approval
  • Complies with all relevant European directives

* Typical for most applications
