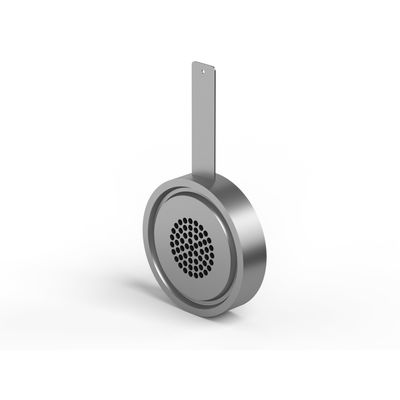

EMCO - Model MRP -Multi-Hole Restriction Plate
EMCO multi hole restriction plates are used to restrict the flow and to reduce the noise in order to prevent damage on pipe line equipment on the upstream side in blow down systems or to limit the flow / pressure to avoid damage on equipment on the downstream side. For insertion between compact flanges or clamp connection, we can help you with the right technical advice. Type MRP/1 is for RF flanges and type MRP/4 is for RTJ flanges.
Construction
Design and calculation standards: ISO 5167, Shell Flow Meter Engineering Handbook, R.W. Miller: Flow Measurement Engineering Handbook, etc.
Sizes: 2" - 24"
Pressure rating: 150 - 2500 lbs
Orifice plate shape: Square edge concentric
Plate thickness: Thickness is calculated to handle the differential pressure, minimum 3 mm for MRP/1 and 20 mm for MRP/4
Material: AISI 316, Duplex, Monel, 6Mo, Titanium Hastelloy, Inconel, others on request
Mounting style: Between Raised Face or Ring Type Joint flanges according to ANSI B16.5 or DIN standards.
Handle: With name plate in AISI 316 with the following inscription : TAG no., serial no. pressure rating, inner pipe dia., bore, material.
Documentation: Material certificate acc. to EN 10204-3.1. Noise calculation
