EPS - Multi-Media Filters (MMF)
Multi-Media Filters (MMF) are an efficient, economical method for removing suspended solids from a waste stream. In low TSS streams, they can be used for primary treatment. They are an excellent method of secondary treatment after a primary treatment such as an inclined plate clarifier.
-
Most popular related searches
How it Works

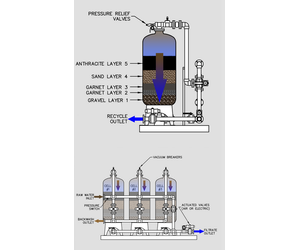

The incoming waste stream enters the top of the filter vessels. As the wastewater travels downward through the filter media, the solids become trapped in the media bed while the water passes through. The clean effluent exits through an outlet header for further treatment or discharge. As the solids build on the media, the pressure inside the filter builds. At a certain pressure, the media has reached a loading capacity and needs to be backwashed. The backwash mode reverses the flow of the water through one filter at a time. The water enters the bottom of the vessel which expands the filter media and releases the captured solids. Once all the vessels are backwashed, the filters return back to original filtration capacity.
Benefits
- Captures 90% or more of particle 20 microns or larger
- Standard Triple Cell design provide the best flux rate for filtration and backwash operation
- 5 layers of media provides better filtration capacity which requires less backwashing
- No consumable costs such as filter bags or cartridges
- Skid mounted design with manual, electrically actuated, or pneumatically actuated vavles
- Vessels constructed of FRP, coated steel, or stainless steel
- Flow ranges from 5 - 1000 GPM
