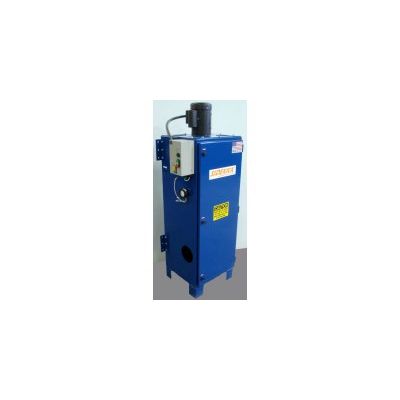

SideKick - Model BT Series -Multi-Purpose Cartridge Collector

The SIDEKICK BT Series provides a robust ventilation solution for Individual work stations - providing 800 CFM at 6" wg total pressure with filtration efficiency nearing 99% to 1/2 micron!

The SIDEKICK BT Series will keep workers safe and comfortable while ensuring a clean shop environment. Parts are cleaner. Work areas are cleaner. Workers are healthier!

The SIDEKICK BT Series is an excellent alternative to large cartridge systems that require fixed work stations and long, expensive duct runs.

Multiple SIDEKICK BT units can be used in place of larger, centralized machines which are expensive to run and when down, can mean all work stations have no ventilation!

Avoid the all-or-nothing trap! The SIDEKICK BT-Series provides a station-by-station ventilation solution!

Small, quiet, versitale, inexpensive, and easy to maintain, the SIDEKICK BT-Series sets the new standard for industrial process ventilation!

Standard Features

• 800 CFM at 6" wg TSP
• Push-button Reverse Pulse Filter Cleaning
• Polyamide Impeller for smooth, quiet operation
• 260 Sq Ft Single Cartridge Filter, 80/20 Cellulose-Polyester Blend
• Minihelic Differential Pressure Filter Gauge
• Removable Dust Tray
• 1.5 HP, 110V/1 Phase, TEFC Motor
• NEMA 1 Start/Stop/Reset Motor Controls

Optional Features

• Flexible Arm, 4" dia x 9 ft
• 24" Leg Stand
• 10 Gallon Collection Drum
• Motor Cover with Flanged Exhaust
• Sound Insulation
• Caster Base
• Automatic dP Pulsing Switch

Applications

• Welding
• Grinding
• Cutting
• Deburring
