FlexHammer - Model 1500 Mobile -Multi Purpose Heavy Duty Hammer Mill

FromIQR Systems AB

SHARE

The FH1500 Mobile Unit is a well known all purpose, heavy duty, high capacity hammer mill of industrial quality standard.

Most popular related searches

domestic waste industry

industrial waste

particle sizing

mobile hammer mill

industrial mill

Finished products:

The finished products are being used as fuel for energy production or for compost or just for volume reduction.
The hammermill’s design allows for a large variety of the finished products’ particle size. Typical finished products are e.g. between 0-50, 0-100 and 0-250 mm.

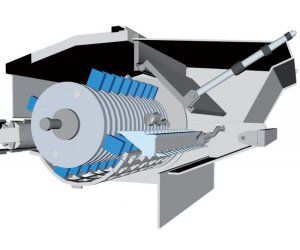

The hammermill has a mechanical safety device in form of a reject door which opens in case of pressure from uncrushable objects. Stones will be crushed.

FlexReject

This is a safety device which prtects the mill from damage and stoppages if any uncrushable material is fed in by mistake.

Powerful
Fuel efficient
Easy to transport on the road
Easy to move on site
FlexReject™ protects the hammer mill from damaging on uncrushable materials

Data

FH 1500 Mobile

Dimensions transport L/W/H: 12,40 (11,5 King-pin) /2,55 / 4,30 m
Total weight: ~35 tons.
Feed opening dimensions, width / height: 1,5 m / 0,8 m
Feedroller diameter: 0,8 m
Feeder: 4,5 / 1,5 (6m3)
Rotor weight: ~4 tons
No. of hammers / Weight of hammer: 40 pcs / 11kg
Rotor diameter / tip to tip: 1200 mm
Rotor speed: ~880 rpm
Engine: Scania DC16 Stage 5
Enginepower: 670 – 770hp
Magnet type: Elme permanent cross belt magnet
Endmagnet in drivedrum: Yes
Discharge belt width: 1,2 m
Discharge belt – dropping height: 4,5 m

Typical materials that the mobile FH1500 hammermill handles are:

Wood waste e.g. demolition timber, railway sleepers, treetops and branches, bark, offcuts from industries etc.
Household waste.
Industrial waste of different kinds.
Commercial waste, packing materials.
