FlexHammer - Model FH1800 Mobile -Multi Purpose Heavy Duty Hammer Mill
Well known for it’s unbeaten capacity and flexibility. Mobile crusher with outstanding performance and over 35 years of built-in experience. The FlexHammer™ system presents great flexibility regarding variation in feed materials. Multi purpose heavy duty hammer mill. Swedish quality.
Finished products:
Are being used as fuel for energy production or for compost or just for volume reduction.
Particle size of finished products:

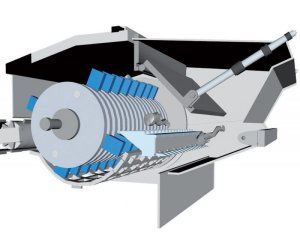

The hammer mill’s design allows for a large variety of the finished products’ particle size. Typical finished products are e.g. between 0–50 mm and 0–500 mm.
Contaminations:
The hammer mill has a mechanical safety device in form of a reject door which opens in case of pressure from uncrushable objects. Stones will be crushed.
FlexRejectDoor
This is a safety device which prtects the mill from damage and stoppages if any uncrushable material is fed in by mistake.
Typical materials that the mobile crusher FH1800 handles are:
- Wood waste demolition timber, railway sleepers, treetops and branches, bark, offcuts from industries etc.
- Household waste.
- Industrial waste of different kinds.
- Commercial waste, packing materials.
FH 1800 Mobile
- Dimensions transport L/W/H: 12,7 / 3,1 / 4,2 m
- Total weight:
- ~47,5 tonnes (30 km)
- ~45 tonnes (80 km)
- Feed opening dimensions, width / height: 1,8 m / 0,8 m
- Feedroller diameter: 0,8 m
- Feeder: 5,5 / 1,8 (9m3)
- Rotor weight: ~5 tonnes
- No. of hammers / Weight of hammer: 48 pcs / 11kg
- Rotor diameter / tip to tip: 1200 mm
- Rotor speed: ~900 rpm
- Engine:
- Cat C27 stage 5
- Tier 4 Final
- Enginepower: 875-1200 hp
- Magnet type: Elme permanent cross belt magnet
- Endmagnet in drivedrum: Yes
- Discharge belt width: 1,4 m
- Discharge belt – dropping height: 4,5 m
