Redoma Recycling AB
Redoma - Model MRC 90-1600 -Multi Purpose Rough Waste Choppers

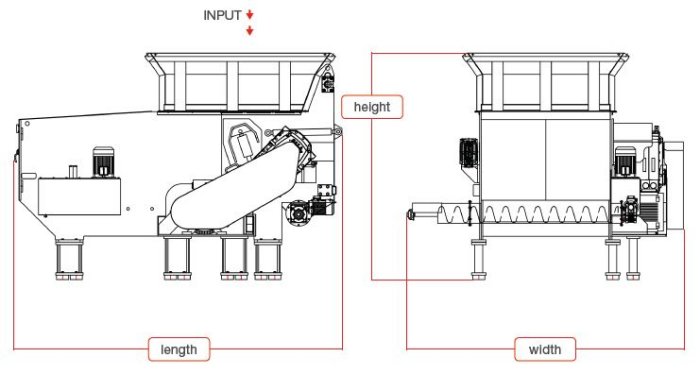

Motor for rotor: 90. Motor for hydraulic unit: 5.5. Motor for screw conveyor: 2.2. Rotor length: 1600. Rotor diameter: 490. Rotor knives: 72. Fixed knives - lower: 4. Fixed knives - upper: 4. Hopper volume: 2.5. Hopper opening: 2230x1940. Overall length: 4080. Overall width: 3445. Overall height: 2820. Weight, approx.: 10500. Max. cable diameter: 140. Max. capacity (*): 1800. Max. capacity (**): 3500. Installed in Redoma plant: Firefox Turbo.
Most popular related searches
multi purpose rough waste chopper
screw conveyor
shock absorber
waste chopper
cable chopping
crane operation

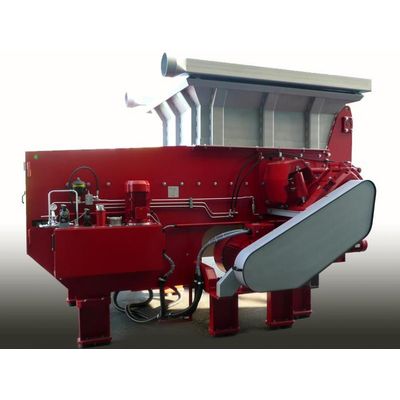

The Multi Purpose Rough Choppers of REDOMA are mainly intended for shredding of cables but can also be used for other materials, such as wood, plastics, cartons etc.
- Cable pieces, coils and bundles can be fed into the rough chopper
- Automatic buffer feeding
- Rotor knives made of hard metal for extra long life span
- Wear-resistant screen made of HARDOX available in different sizes
- Hydraulic pusher
- Hydraulic shock absorber for gear box
- Automatic reversing of rotor when overloaded
- Material discharge normally by screw conveyor
- Suitable for forklift or crane feeding
- PLC-operated with touch screen
- 10 pre-set programs for different types of cable
- Cables are chopped down to typically 10-25 mm
