Mellegard & Naij - Model MR -Multi-Rake Screens
FromHydria Water AB

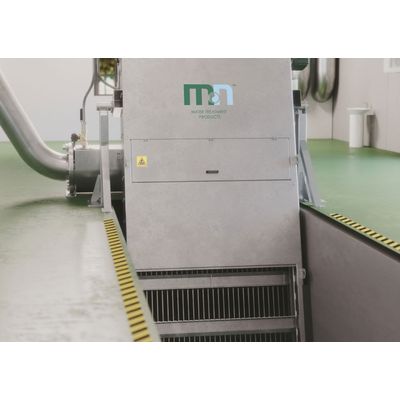

Multi Rake MR is a modern mechanically raked coarse bar screen that separates debris and large screenings from water.
Most popular related searches
wastewater treatment plant
coarse bar screen
multi-rake screen
rake screen
raking screen
water treatment plant
wastewater treatment
water intake
fine screen
fine screening
- Curved bars at the bottom for higher capacity and optimum material conveying.
- Replaceable bars, spacing and rakes elements.
- Stainless steel chains and sprockets.
- Module section design for simple installation and delivery.
- Quality construction from thick certified stainless steel material.
- Enclosed, safe and hygienic with easy to open access doors.
It’s used in pumping stations, water intakes, waste water treatment plants. Conveyor chain drive with multiple rakes gives fast cleaning cycles giving high flow and conveying capacities.
- Discharge height: 1-50 m
- Width: 300-4000 mm
- Bar spacing: 12-100 mm
- Capacity: 10-10000 l/S
- Motored gears: SEWochNord
- Material: EN1.4301, EN1.4404 or by client demand
