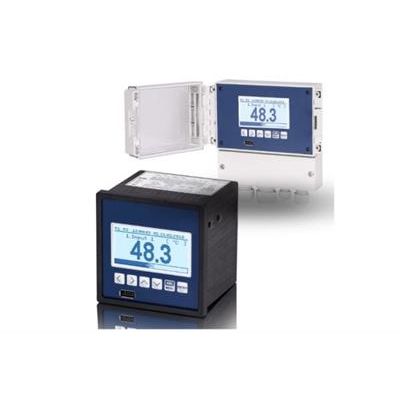

BD|Sensors - Model CIT 650 - Multichannel Process Display with Datalogger and Contacts
From Evaluation - Data Loggers
Multichannel process display 96 x 96 mm datalogger and contacts. Input signal: 0/4 ... 20 mA. graphic LC display. transducer supply 24 VDC. communication interface RS-485 (Modbus RTU). front panel housing 96 x 96 mm. 1, 4 oder 8 analog input ports. 1 digital input port. internal memory: 2 MB
-
Most popular related searches
Optional Features:
- input signal Pt100 / Pt500 / Pt1000
- USB-Host-Port
- wall mounted housing 166 x 161 mm
Functional Range
- direct storing of measured values onto USB memory stick or internal memory
- data and configuration transfer via USB memory stick or RS-485
- sampling rate from 1 sec up to 1 h
- triggering of logging via digital input
- parameterizable alarms for exceeded input range
- adjustable contrast and brightness of the display
- software for parameterization and archiving of measured values
Specifications:
- Display: Graphic LC display
- Input:
- 1/4/8 analogue inputs
- 1 / 4 / 8 RTD inputs
- Output: 2 OC-contacts
