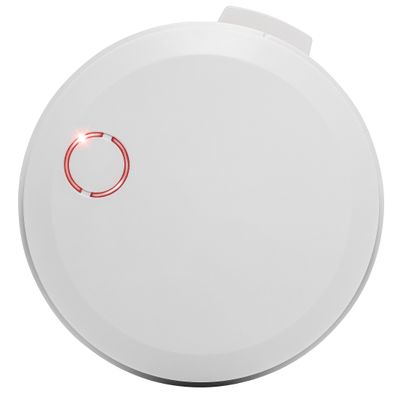

Autronica - Model V-430 -Multicriteria Protector
Basic smoke/heat detector, no alarm device. AutroGuard® V-430 multicriteria protector provides a new generation technology that simplifies installation and commissioning, and increases fire safety. Extreme sensor dynamics provide reliable detection that has greatly reduced detection time and nuisance alarms, and expanded the use to cover even more application areas. The type of operation is configurable to Heat, Optical or Multisensor, covering several applications.
It has a wide range of fire safety features included in one single device, providing significant reduction of wiring and installation costs - and a cleaner look.
DYFI3D technology
AutroGuard® utilizes DYFI3D technology; MultiAngle/MultiWavelength detection with advanced algorithms analyze the unique signatures for each type of fire and nuisance source in a 3D space, enabling the protector to accurately distinguish between real fires and nuisance alarm sources.
SelfVerify
The SelfVerify system function provides a calibrated and automatic self-test every 24 hours. It tests the signal path to the system panel, alarm devices and output units. In this way, the self-test ensures that the protector is able to initiate an alarm when it should, and at the correct sensitivity level according to EN 54 part 5 and 7 throughout its lifetime.
Additionally, an advanced Pulse Response Signal analysis is run every other second, verifying 100 % of the components in the signal path and 99 % of the components in the protector.
Cover Detection
As an add-on feature, AutroGuard® V-430 provides Cover Detection. We use infrared light to detect if the protector is covered by a dust cap or any other object, and a fault message will appear. The feature can be turned off during maintenance.
Compatibility
AutroGuard® is compatible with AutroSafe Interactive Fire Detection System version 4.11 and later versions.
AutroGuard® is compatible with AutroSafe Loop panel (BU-110 / BV-110) version 1.6 and later versions.
Variants - examples
To choose SelfVerify and Cover Detection in your protector, use part number 116-V-430/CD.
For marine certifications, use part number 116-V-430/M
For a complete set of part numbers, see the part number matrix.
Part number: 116-V-430
