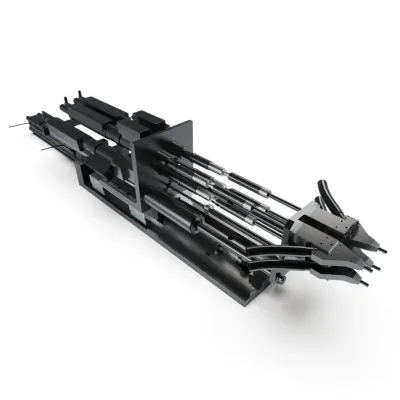

Carlson - MultiDrive Multi-Spindle Automatic Drive Head
The MultiDrive Multi-Spindle Automatic Drive Head is an advanced tool designed for industrial automation in screwdriving applications. It features a configuration capable of driving multiple screws or fasteners simultaneously or individually depending on application requirements. The drive head supports up to 18 screwdriving spindles, each programmable to suit specific tasks, making it a highly versatile component in assembly automation. Its robust design includes a torque capacity exceeding 200 Nm and a weight of over 75 lbs, ensuring its capability to handle heavy-duty tasks. Engineered to integrate seamlessly with blow-feed automatic screwfeeders, it is also adaptable for driving various fasteners such as bolts, pins, and rivets. The MultiDrive's construction incorporates a quick bit change system, linear guide bearings for extended operational life, and options for depth control and screw presence. Additionally, it offers compatibility with a wide range of screwdriver brands available in the market, making it a flexible solution for diverse industrial applications.
MultiDrive Multi-Spindle Automatic Drive Head
A multi-spindled automatic screwdriver head that is engineered to suit your industrial screwdriving automation application.
Streamlined automatic screw assembly made simple.
Carlson Engineering automated screw driving machines are designed to work with a screwfeeder or step feeder, and assist in your assembly automation fastening process by advancing the screw or screws to your product, stopping above it, and then advancing the bit driving the screw or screws to torque or depth. Carlson automatic feed screwdriver systems can be fitted with almost any brand of screwdriver on the market today.
- Torque Capacity : 500-nm
- Drive Head Type : multi-spindle
- Approx. Weight : 34-68-kg
- Approx. Width : 152-mm
- Max Fastener Ø : 50-mm
- Max Fastener Length : 127-mm
- Fastener Types : screw, set-screw, nut, bolt, pin, stud, rivet
Automatic Screwdriver Head Anatomy & Features.
About the MultiDrive Multi-Spindle Automatic Drive Head automated screw assembly end effector.
Our line of high-performance, low maintenance automatic screwdrivers and screw feeder equipment consistently & effortlessly increases the efficiency of assembly automation lines, and results in lower cost of operation for automatic screwfeeding and screwdriving.
- 500-nm torque capacity.
- 34-68-kg without screwdriver tool.
- 152-mm approximate width.
- Quick screwdriver bit change.
- Linear guide bearings for long life.
- Home & extend limit switches.
- Screw presence option with bracket.
- Optional depth control.
- Jaw & part never touch.
- Can adapt to most screwdrivers.
