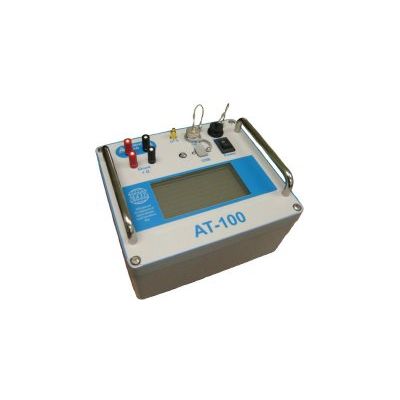

AGCOS - Model AT-100 -Multifunction Current Source for Geophysical EM Surveys

AT-100 current source is a lightweight, compact and portable geophysical transmitter with wide range of the output frequencies and currents, allowing large variations of the load impedance. The unit has a stabilized output current up to 1A for driving inductive loads or grounded dipoles. AT-100 is powered by 12V external battery. AT-100 has GPS synchronization, external sync signal push-pull connector output/input for synchronization with other geophysical instruments. A high visibility VFD display with pressure sensitive touch screen allows easy operation of the unit during day light conditions and USB port for PC data transfer.
