AGCOS - Model MARY-24 - Multifunction Low-Frequency Geophysical EM Receiver

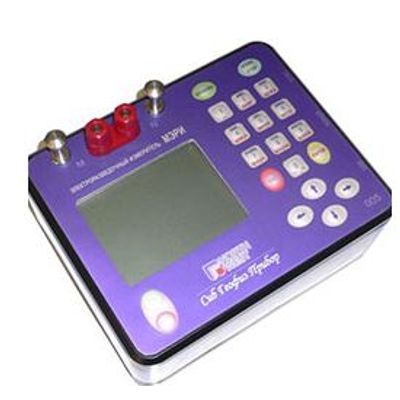

Measuring instrument MARY (Multifunctional receiver for electrical and electromagnetic prospecting) represents the newest development in the field of creation of the portable geophysical equipment. Compactness and simplicity of use of the device are combined with opportunities which until recently were inherent in only large-sized electroprospecting stations. The Scope of a measuring instrument includes structural, mapping, exploration, hydro-geological, engineering-geological, archeological, geotechnical and ecological researches.
The geophysical instrument «MARY» (Mul...
The geophysical instrument «MARY» (Multifunctional receiver for electrical and electromagnetic prospecting) is designed for the measurements of electrical and electromagnetic fields during geophysical explorations. It is intended for measurement of parameters of a constant and variable pressure in field conditions at electroprospecting surveys.
The device allows to conduct surveys by methods of resistance (the amplitude of the basic harmonic of a signal is measured), Induced polarization (IP), self potential (constant electric fields are measured) (SP) and frequency sounding (amplitudes of harmonics of a signal are measured, and also differential phase parameters on an output of electric and magnetic gauges in a wide range of frequencies) (FS). The choice of a method defining adjustment of units of the device is carried out from its main menu (individual adjustment is supposed also)
The «MARY» meter consists of two main units: direct current amplifier and micro controller. The amplifier has two dirigible cascades and includes the compensator of the constant component of the signal, band-elimination (notch) filter (50 or 60 Hz), low-pass filter (LPF), high-pass filter (HPF), band filter (BF), calibration signal shaper.
The operation of all units is coordinated by micro controller. The controller is designed on the basis of 80L188EC (Intel) microprocessor and includes 16-bit analog-digital converter (ADC), 2 Mbytes of nonvolatile memory to store programs, data and processing results, 128 Kbytes of operative memory, autonomous real-time clocks with calendar, standard external interface for the connection with a personal computer.
The meter includes a liquid crystalline display and a keyboard. Power supply is provided by a 4.8 – 6 V storage batteries.
Application/Industries Served
MARY-24 Receiver could be used for the following:
- Apparent resistivity measurements (amplitude of the signal’s first harmonic is measured);
- Induced polarization measurements (phase shifts between carrier-harmonics are measured);
- Self potential measurements (constant component of the field is measured);
- Industrial frequency and cathode protecting field measurements for the purpose of mapping and studying the underground utility conditions.
Additional Features:
MARY-24 has a large LCD display and ergonomic keyboard. Power is supplied with internal rechargeable batteries or external power. During the process of measurement MARY-24 registers the input signal, processes it, outputs results on the screen and stores the data. Acquired data could be transferred to PC for further in-lab data processing.
Specifications
- Geophysical methods: SP, Resistivity, IP, FS
- Channels: 1
- ADC 24 bit
- Frequency list:
- 0.019, 0.038, 0.076, 0.153, 0.305, 0.610, 1.221, 2.441,
- 4.883, 9.766, 19.53, 39.06, 78.13, 156.3, 312.5, 625.0 Hz
- 0.021, 0.032, 0.042, 0.063, 0.083, 0.125, 0.167, 0.250,
- 0.333, 0.500, 0.667, 1.000, 1.333, 2.000, 2.667, 4.000,
- 5.333, 8.000, 10.67, 16.00, 21.33, 32.00, 42.67, 64.00,
- 85.33, 128.0, 170.7, 256.0, 341.3, 512.0 Hz
- Additional:
- 50, 60, 100, 120 Hz
- Input Range: -2.0…+2.0 V
- Minimal measurable signal: 1 mV
- Input Impedance: >5 MOhm
- Compensable voltage range: -1.25…+1.25
- Compensation imprecision: 10 mV
- Amplification: ¼, ½, 1, 2, 4, 8, 16, 32, 64, 128, 256
- Internal memory size: 16Mb
- Interface type: USB 1.1
- Max. power consumption: 2 W
- Internal power supply: 12 V, 3 Ah
- External power supply: 12 V
- Min. autonomous duty time: 10 hours
- Temperature range: -20 - +60 °C
- Weight: < 3 kg
- Dimensions: 190 x 145 x 72 (95)
